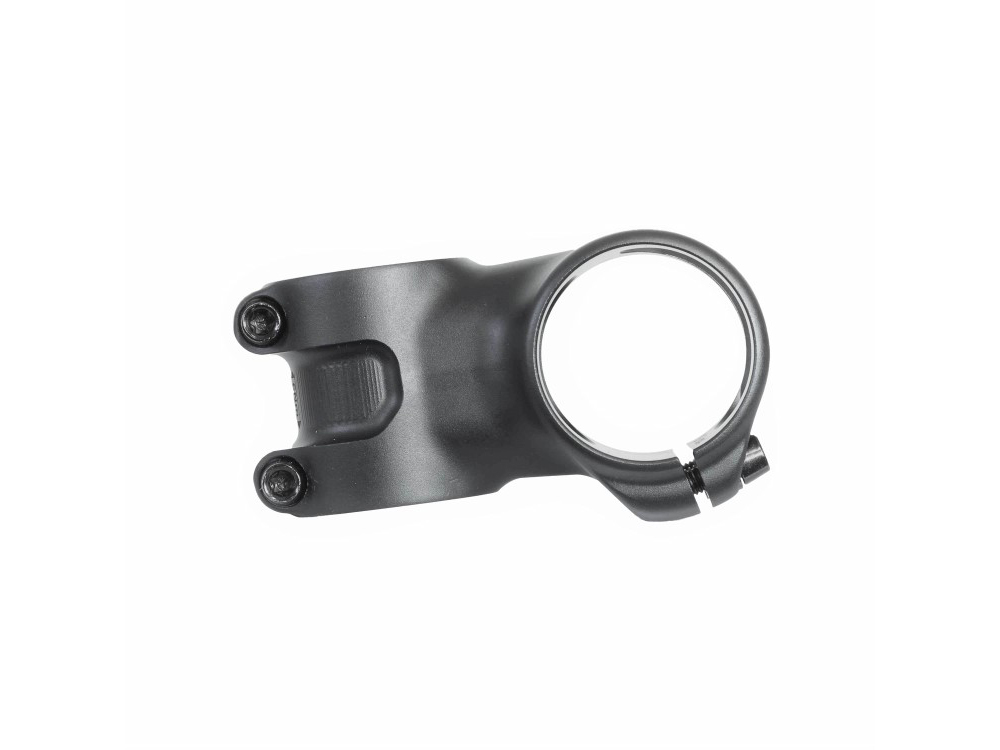

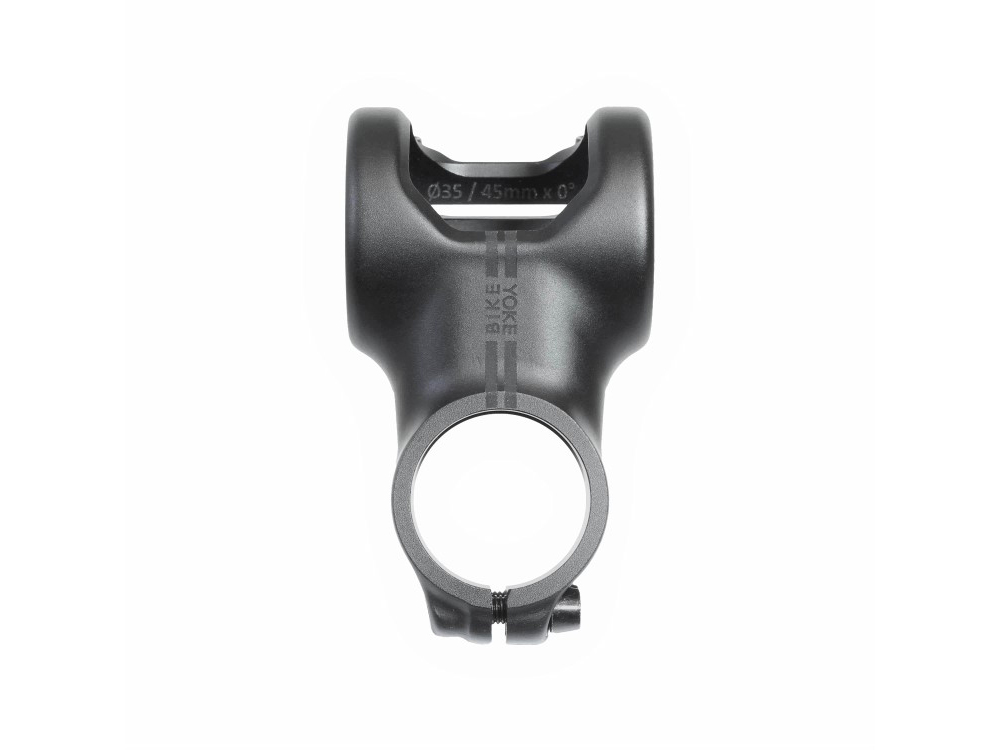

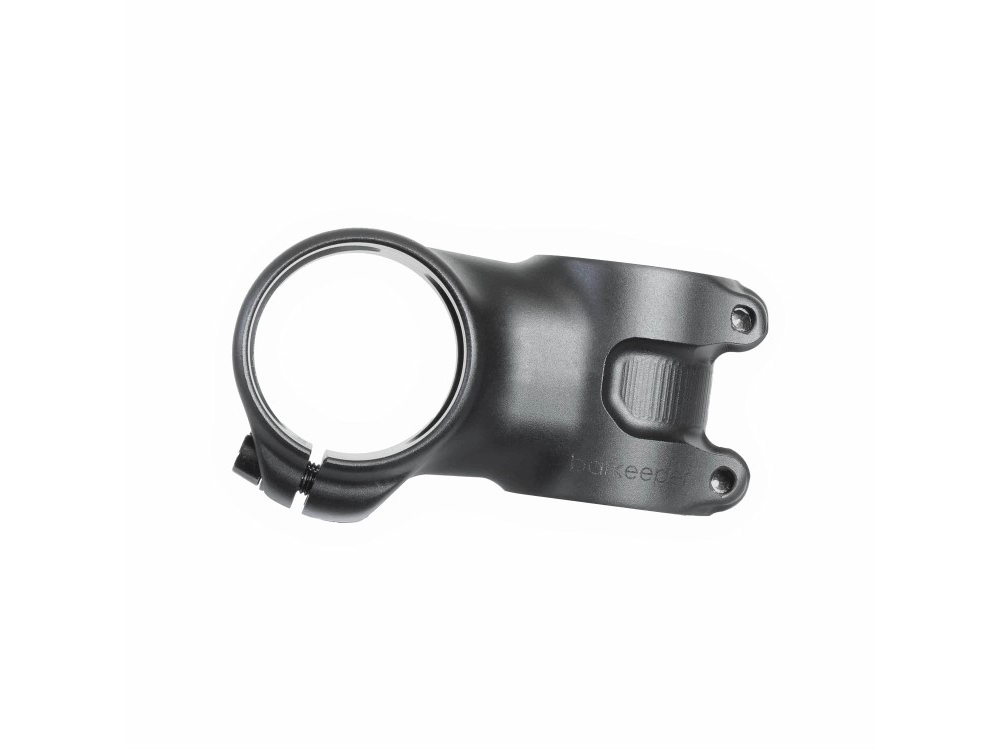

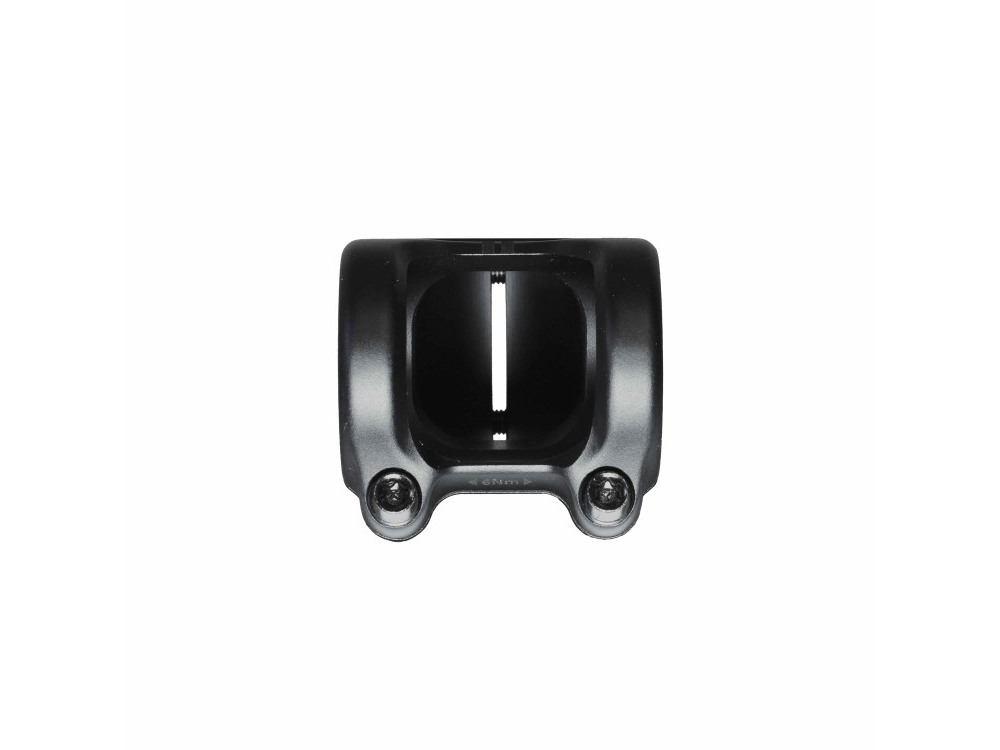

Bike Yoke Barkeeper Stem

Particularly beautiful, an extraordinary strength to weight ratio are the key features of our Barkeeper stem.

The cost extensive and highly precise production of this masterpiece includes many steps, including:

• precise forging process
• Multi-tempering
• CNC machining of critical contact interfaces
• Shot peening for surface hardening
• Laser engraving
• Anodizing

All three available lengths (35mm, 45mm, 55mm) were successfully tested to match and exceed the requirements for the strongest/highest possible category for mountain bike components (category 5) of DIN EN 17406:2021 and ASTM F2043-13. These tests were run with an 800mm handlebar width, which leaves plenty reserves for their intended use on “Trail” and “Enduro” bikes.

The incredible attention to detail in manufacturing and finish quality can also be seen in areas, which are not even visible, when installed. Call it nuts, but this is our striving for perfection!

Important note:
The obvious one-piece design allows for an incredible high strength-to-weight ration, but it does cost some compatibility. Not every handlebar will be compatible to our Barkeeper stem. Although we have successfully tested handlebars with 35mm rise, there is no guarantee for compatibility. We assume most handlebar with a rise of up to 30mm will work, but it greatly depends on the slope and shape.
You can find a list of compatible handlebars next to this description under “compatible handlebars”. We will try to update this list, so feel free to let us know, once you have successfully installed a handlebar, which we can add. This list makes no claim to completeness or correctness and is only to be understood as a reference.
Please always follow the installation instructions that come with your stem.

Specs:
Rise: 0°
Stack height: 40mm
Clamping width: 50mm
Compatible steerer tubes: 1 1/8″
Compatible handlebar diameter: 35mm clamping
Usage Cassification: Category 5 after ASTM F2043-13 or DIN EN 17406:2021 for handlebars up to 800mm width
Material: Aluminum Al-7075, multi-tepered

Weights (titanium / steel bolts):
35mm length:   80g   /   86g
45mm length:   90g   /   96g
55mm length: 106g   /  112g

1 set Barkeeper stem includes:

1x stem
1x set bolts + washers (steell)
1x installation aid (wedge)
2x installation screw

optional:
1x set Ti-bolts T25 (black coated)

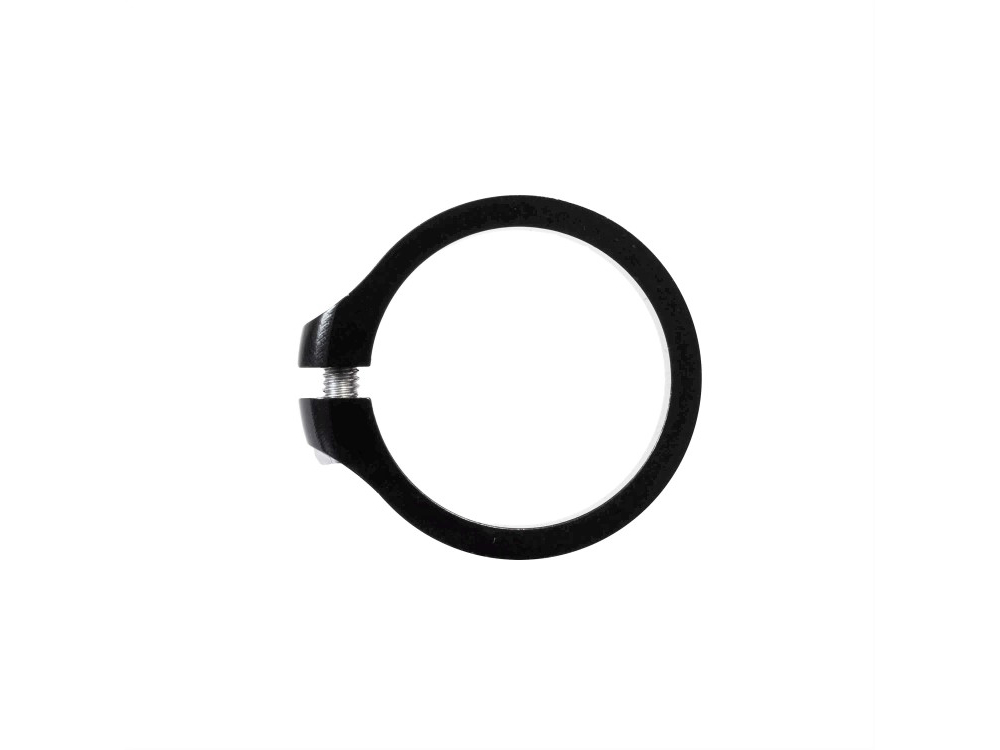

1x Aimy (steerer clamp)

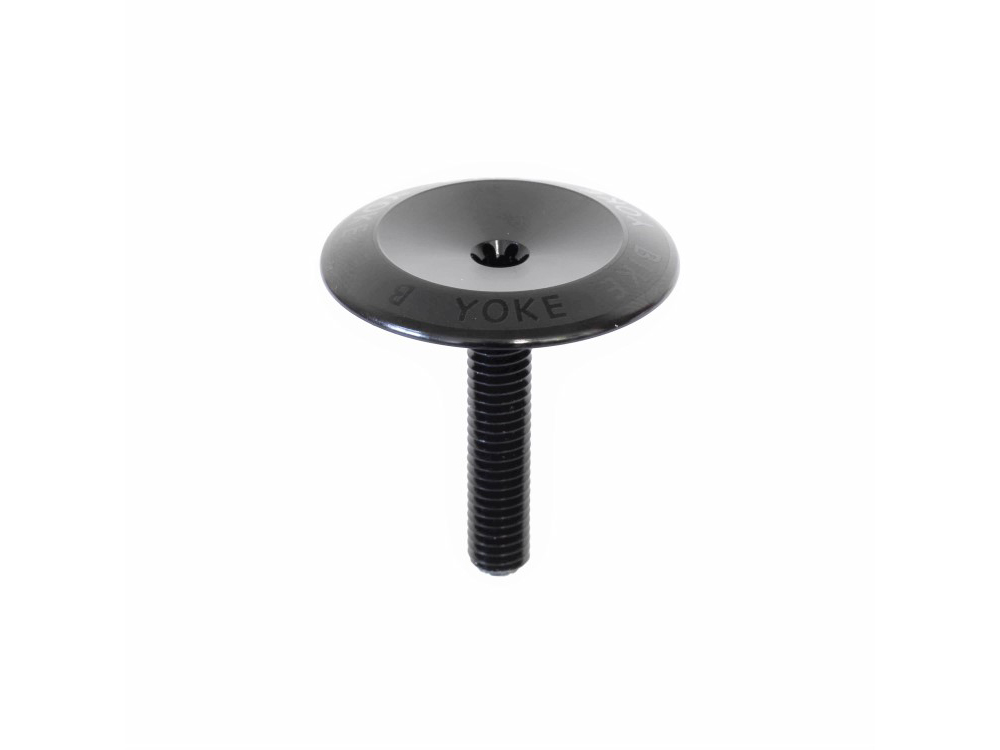

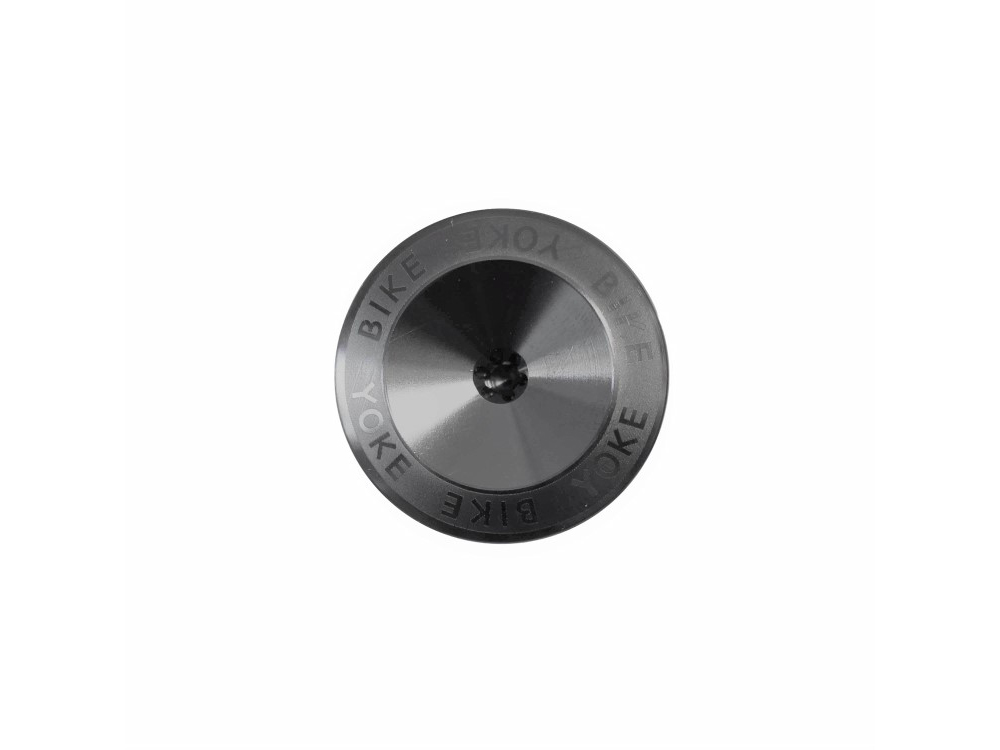

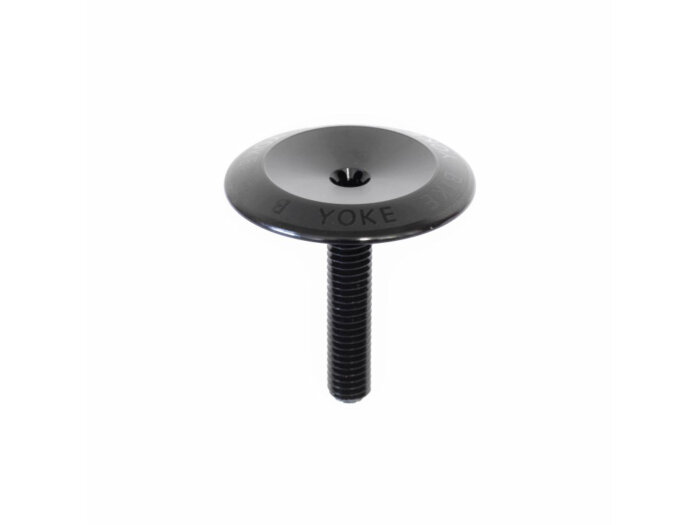

1x Topper (headset topcap)
