Amflow E-MTBs
Amflow builds full-carbon e-MTBs around the Avinox drive system, with up to 150 Nm of Boost torque on the M2S motor. The current range is the PX, PR and TL, from full-power e-MTBs to the TL Carbon touring bike. See them at 12 Carr Road, Three Kings, or ask us about a custom build.
Which Amflow E-MTB Suits Your Riding?
The PX and PR both run a 160 mm fork and 150 mm of rear travel. The PX uses the M2S motor (150 Nm Boost), a 700 Wh internal battery, a mullet setup and 40 geometry settings. The PR is the PX platform with a removable 800 Wh battery. The TL is a 120/105 mm touring bike with rack mounts.
Amflow Product Highlights
Avinox drive
Every Amflow uses Avinox. The M2S on the PX and PR Carbon Pro gives 150 Nm and 1,500 W in Boost for up to 60 seconds; the M2 on the PR Carbon and TL gives 125 Nm and 1,100 W peak.
Full-carbon frames
Every Amflow uses a carbon frame. Amflow’s claimed frame weights (size M) are about 2.4 kg for the PX and about 2.9 kg for the PR.
Geometry you can tune
The PX and PR combine a five-position head angle (±1°), two bottom bracket heights and four chainstay lengths for up to 40 setups.
Fast charging, smart display
The 508 W charger is about three times faster than the 168 W unit from 0–80%. The 2″ OLED display reaches 800 nits, and the app adds phone-key unlock, movement alerts and fault diagnostics.
Amflow E-MTBs in Stock
Every Amflow bike and part we carry. Filter by category or size, and check stock and expected arrival dates on each product page.

Amflow TL Carbon
$6,999.00

Amflow PR Carbon Pro
$10,699.00

Amflow PR Carbon
$8,599.00

Amflow PX Carbon Pro
$17,099.00

Amflow PX Carbon
$12,199.00

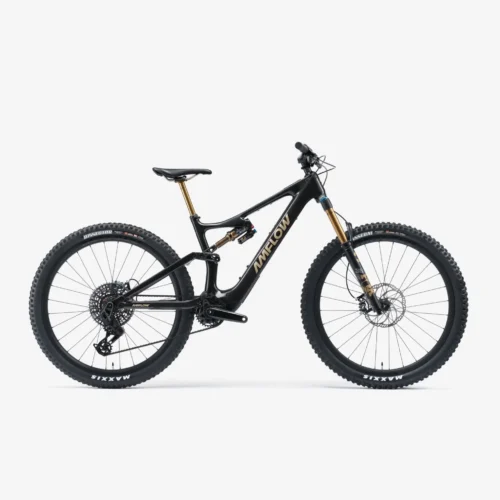

Amflow PL Carbon PRO 29er
$15,990.00

Amflow PL Carbon 29er
$10,990.00
$8,990.00
Which Amflow Is Right for You?
Choose the PX for full power with a slim integrated battery, and the PR for the same 150mm platform with a large removable battery. The TL is an all-terrain touring e-bike, with less travel and room for a second battery. Every Amflow has a carbon frame and an Avinox drive system.
| Spec | PX Carbon | PR Carbon | TL Carbon |
|---|---|---|---|
| Built for | Full-power e-MTB, integrated battery | Full-power e-MTB, removable battery | All-terrain touring |
| Rear / fork travel | 150* / 160mm | 150* / 160mm | 105 / 120mm |
| Wheels | 29″ front, 27.5″ rear | 29″ front, 27.5″ rear | 27.5″ or 29″ |
| Motor | Avinox M2S, 150Nm | Avinox M2, 125Nm (Pro: M2S, 150Nm) | Avinox M2, 125Nm |
| Battery | 700Wh integrated | 800Wh removable | 800Wh, plus optional 480Wh second battery |
| Weight (size M) | 21.0kg (Pro: 20.6kg) | 22.6kg (Pro: 23.1kg) | 22.6kg (S/M) |
| Head angle | 64.2°, adjustable ±1° | 64.5°, adjustable ±1° | 66.9° |
From Amflow’s published specifications and FAQs. *Amflow doesn’t list rear travel for the PX and PR; 150mm is from independent reviews (Flow, BikeRadar, The Loam Wolf).
What Is the Avinox Drive System?
Avinox is the drive system every Amflow is built around. The current range uses two motors: the M2 on the PR Carbon and TL, and the M2S on the PX and PR Carbon Pro. The M2S is the stronger of the two, with 150Nm of peak torque against the M2’s 125Nm.
The motor works with a colour display, wireless handlebar controllers and the Avinox app, which lets you adjust how the assist modes feel. Walk assist and hill-start assist help on steep pushes and restarts.
Carbon or Carbon Pro: What's the Difference?
The Carbon and Carbon Pro versions of the PX and PR share the same frame and geometry. On the PX, the Pro adds FOX Factory suspension, a SRAM X0 Transmission drivetrain and carbon wheels. On the PR, the Pro moves from the M2 to the more powerful M2S motor, and adds a FOX 36 fork, a Float X shock and Magura brakes.
| Part | PX Carbon | PX Carbon Pro | PR Carbon | PR Carbon Pro |
|---|---|---|---|---|
| Motor | Avinox M2S | Avinox M2S | Avinox M2 | Avinox M2S |
| Fork | FOX 36 Performance | FOX 36 Factory, GRIP X2 | FOX AWL HD Sport | FOX 36 Performance |
| Shock | FOX Float X Performance | FOX Float X Factory | FOX Float Rhythm | FOX Float X Performance |
| Drivetrain | SRAM S1000 | SRAM X0 Transmission | SRAM S1000 Transmission | SRAM S1000 Transmission |
| Brakes | Magura Gustav Pro | Magura Gustav Pro | Tektro TKD173 | Magura Gustav Pro |
| Wheels | Alloy | Carbon | Alloy | Alloy |
What Size Amflow Do I Need?
The PX and PR come in Medium to XXL. Amflow’s height ranges overlap a lot, so most riders fit two sizes: go down for a more playful bike, or up for more stability. If you’re unsure, talk to us or book a demo ride.
| Rider height | M | L | XL | XXL |
|---|---|---|---|---|
| PX | 162–178cm | 170–185cm | 175–191cm | 185–201cm |
| PR | 160–176cm | 168–183cm | 173–189cm | 183–199cm |
Heights without shoes, from Amflow’s FAQs.
| Reach | M | L | XL | XXL |
|---|---|---|---|---|
| PX | 455mm | 478mm | 503mm | 528mm |
| PR | 452mm | 475mm | 500mm | 527mm |
From Amflow’s published geometry. Carbon and Carbon Pro share the same geometry.
Who Makes Amflow Bikes?
Amflow is an e-bike brand launched in 2023, and every Amflow is built around the Avinox drive system. The current range covers the PX and PR e-MTBs and the TL all-terrain touring bike, all with carbon frames. Read Amflow’s brand story.
Amflow lists a 5-year carbon frame warranty for the original owner, and 2 years on the motor, display and battery (battery up to 500 cycles). Suspension, brakes and drivetrain are covered by their own makers. Amflow publishes these terms for some markets only, so ask us how warranty works for bikes bought in New Zealand.
Amflow FAQs

What's the difference between the PR Carbon and PR Carbon Pro?
The motor. The PR Carbon Pro has the Avinox M2S (150 Nm, 1,500 W peak); the PR Carbon has the M2 (125 Nm, 1,100 W peak). Both have a removable 800 Wh battery and 150 mm of rear travel.

Can I remove the battery?
On the PR, yes — it was Amflow’s first removable battery, at 800 Wh. The TL’s 800 Wh battery is also removable. The PX uses a 700 Wh battery inside the downtube.

What wheel sizes do Amflow bikes run?
The PX and PR come as a mullet (29″ front, 27.5″ rear) and take a 29″ rear wheel. The TL can run 27.5″ or 29″ at either end.

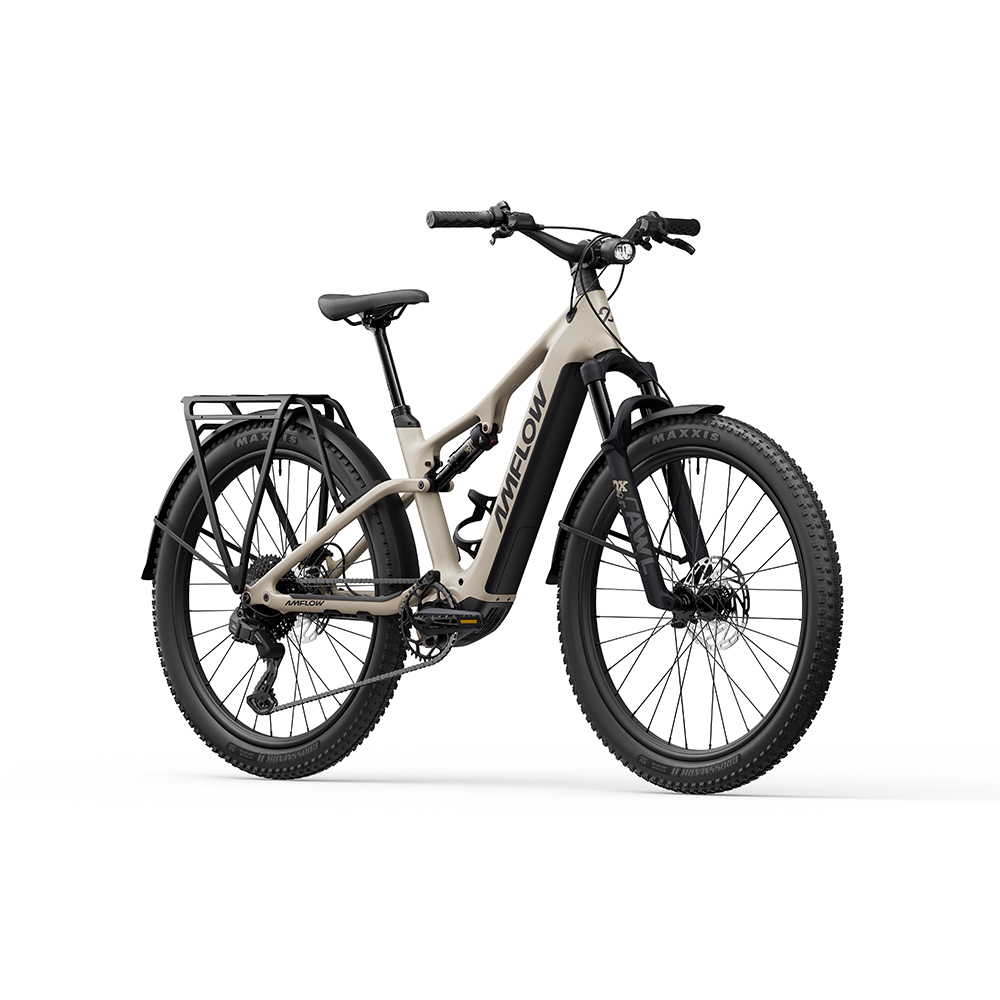

What is the Amflow TL Carbon for?
Amflow calls it “an SUV e-bike built for multiple scenarios”. It has 120 mm front and 105 mm rear travel, traction control and Avinox × SmoothShift electronic shifting, and its MIK rack interface takes panniers or a trailer.
Talk to a Rider, Not a Call Centre
Tell us which Amflow you’re after and we’ll come back to you about a demo ride, a quote or sizing — or come and see the range at 12 Carr Road, Three Kings.
