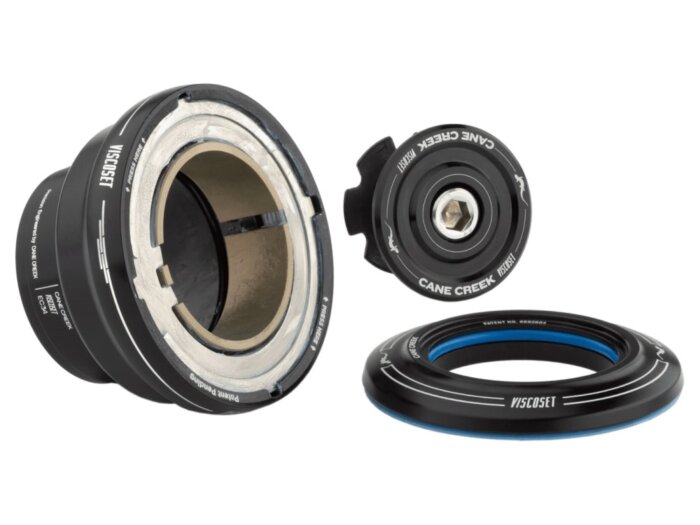

Cane Creek ViscoSet Headsets

ViscoSet. Oscillation Eliminated

ViscoSet offers viscous damping to make bicycles safer by inhibiting the uncontrolled steering oscillation known as speed wobble. Speed wobbles are vibrations that start small and get worse due to harmonics. This frightening shimmy can affect the handling of any bicycle under certain conditions and is the result of many different factors.

Additional information
Cups and Covers: 7075 T-6 Aluminum
Covers: Low-friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts
Bearings Dependable Zinc coated, Forty series sealed cartridge bearings
Damping Tune-able by changing shim orientation
Interlok® Interlok® spacer compatible
Headtube Length Design is head-tube length independent
Assembly Pre-Greased Cartridge. No Re-Grease needed.
Stack Heights External Cup (EC) – 22.2mm Top, ZeroStack (ZS) – 13.5mm Top
Weight ZS44 – 75 grams
*Weights do not include preload assembly

Fluorocarbon gel
Micro-thin plates are inter-leaved in an encapsulated cartridge and connected to both the frame and the steerer tube. As they rotate against each other, a fluorocarbon gel between each layer provides viscous damping and stops the oscillation of the handlebars before it grows to a dangerous level.

Tuneable
By changing the orientation of the Viscoset shims, riders are able to personalize the damping characteristics to their preferred amount of damping.
