Park Tool Head Cup Removers

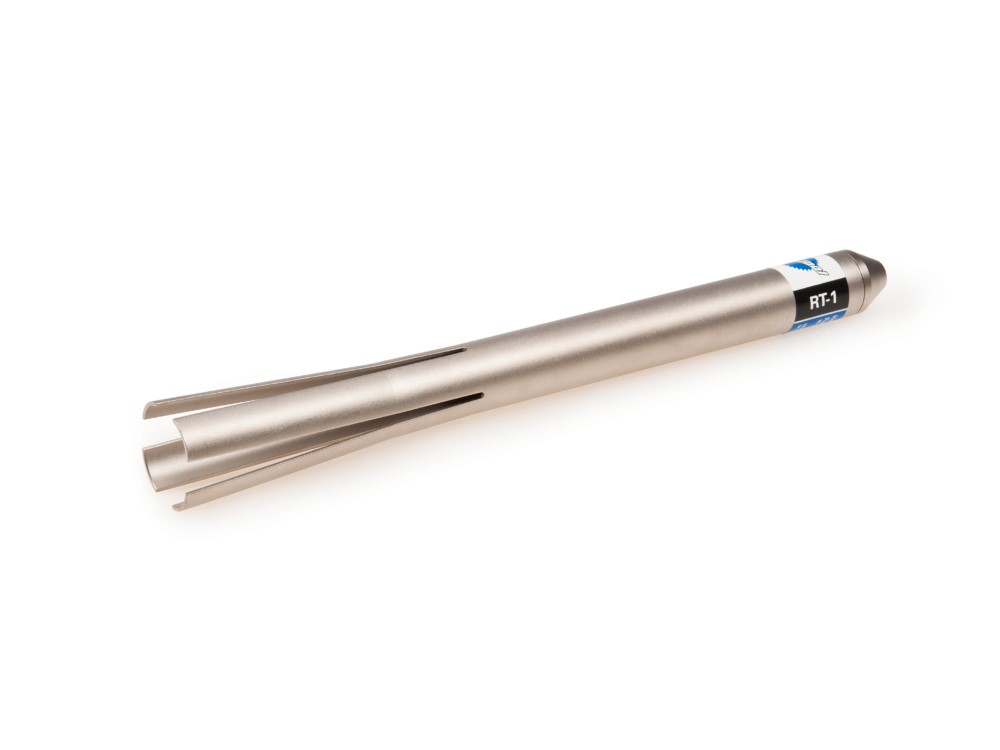

PARK TOOL – RT-1 – HEAD CUP REMOVER

The RT-1 makes press fit headset and bottom bracket bearing cup removal easy. The tool is pulled through the frame until the flared ends snap in behind the cup. The tool end is struck with a mallet and the flared ends evenly distribute force around the cup as the cup is driven out. Strong heat-treated alloy steel construction with nickel finish for a long service life.

Removes bearing cups from head tubes using 1″, 1 1/8″ and 1 1/4″ headset standards
SHIS terminology: removes EC29, EC30, EC33, EC34, and EC37 headset cups
Also removes some press fit bottom bracket cups including SRAM® DUB®, Campagnolo® Power Torque™, and Campagnolo® Ultra Torque®
For use on cups or bearings with an ID of 27 to 38 mm (1.06″ to 1.5″)
Nominal OD of shaft is 25.4 mm (1″)

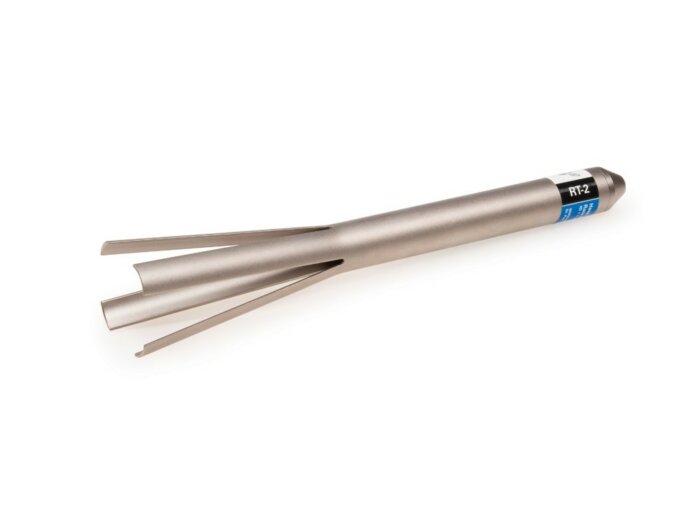

PARK TOOL – RT-2 – OVERSIZED HEAD CUP REMOVER

The RT-2 makes headset bearing cup removal easy. The tool is pulled through the frame until the flared ends snap in behind the cup. The tool end is struck with a mallet and the flared ends evenly distribute force around the cup as the cup is driven out. Strong heat-treated alloy steel construction with nickel finish for a long service life.

Removes bearing cups from head tubes using 1 1/4″ and 1 1/2″ headset standards
SHIS terminology: Removes ZS44, ZS49, ZS55, ZS56, EC49 and EC56 headset cups
Also removes bottom bracket cups on one-piece crank systems
For use on bearing cups with an ID of 38 to 55 mm (1.5″ to 2.1″)
Nominal OD of shaft is 25.4 mm (1″)
