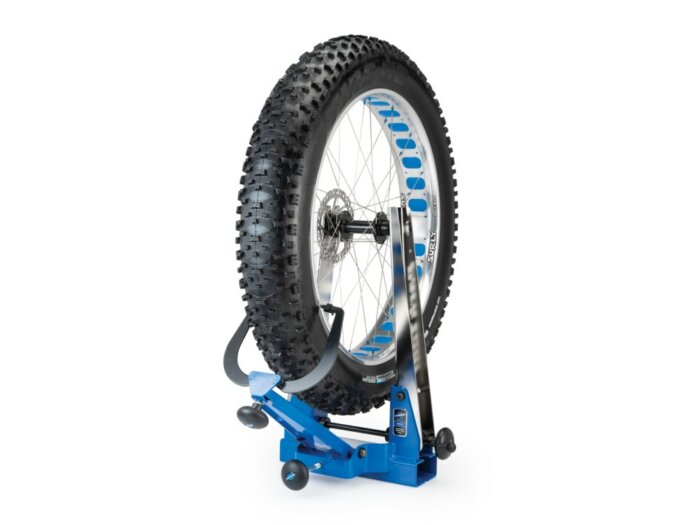

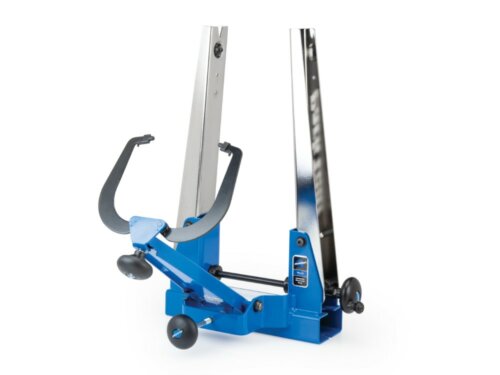

Park Tool TS-4.2 Professional Wheel Truing Stand

PARK TOOL – TS-4.2 – PROFESSIONAL WHEEL TRUING STAND

The TS-4.2 builds on our 40+ years of experience making truing stands for professional mechanics and adds a broader range of compatibility as well as several additional features for the most all-around useful truing stand we’ve made so far.

VERSATILE

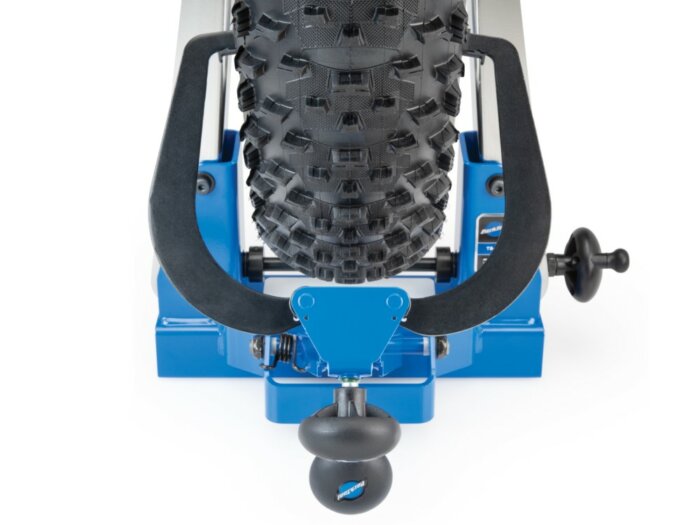

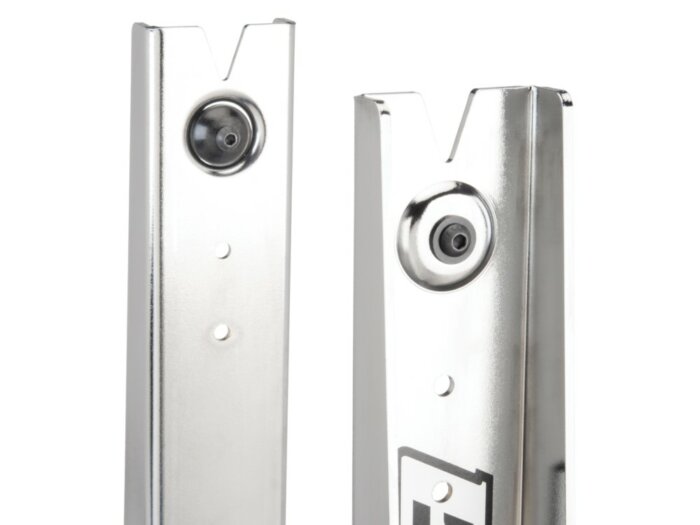

We took our classic truing stand design and made it bigger in every way — taller uprights, a wide base, and oversized caliper fingers. The result is a stand capable of accepting virtually any wheel and tire combination found on a bicycle — from fat tires to aero rims, from kid’s bikes to 29ers. Upright adjustment is controlled with an ergonomically-designed speed knob, which quickly adjusts the stand to accommodate any hub width in seconds. The sturdy uprights of the TS-4.2 feature integrated thru-axle adapters for compatibility with thru-axle, quick release, and solid axle hubs without the use of additional parts or adapters. The oversized caliper fingers easily clear virtually any tire (including fat bikes), eliminating the need to remove the tire for truing, which is especially handy for tubeless setups.

DURABLE
The TS-4.2 is constructed from durable nickel chrome-plated and powder coated heavy-gauge steel and is manufactured, assembled and calibrated in St. Paul, Minnesota. Strong, comfortable knobs and spring-loaded calipers and caliper arm ensure smooth, consistent operation, and the removable composite caliper tips protect painted rims and fragile materials. 100% adjustable and rebuildable for a lifetime of use.
Both uprights move simultaneously to always keep wheel centered in the stand

WHEEL CAPACITY
Maximum wheel size: Up to 29″+ with or without tire
Hub width: 75 to 250 mm (2.95–9.8″)
Maximum rim width: 127 mm (5″)
Maximum tire width: 152 mm (6″)
Hub compatibility: Accommodates thru axle, quick release and solid axle hubs

MOUNTING OPTIONS
Bolt to benchtop — mounting slots are 9.5 mm (3/8″) deep and approximately 311 mm (12.25″) from center to center
Clamp in vise — base is 102 mm (4″) deep
Install in TSB-4.2 Truing Stand Base

Truing Stand Base Sold Separately
