Race Face Atlas 35 Stems

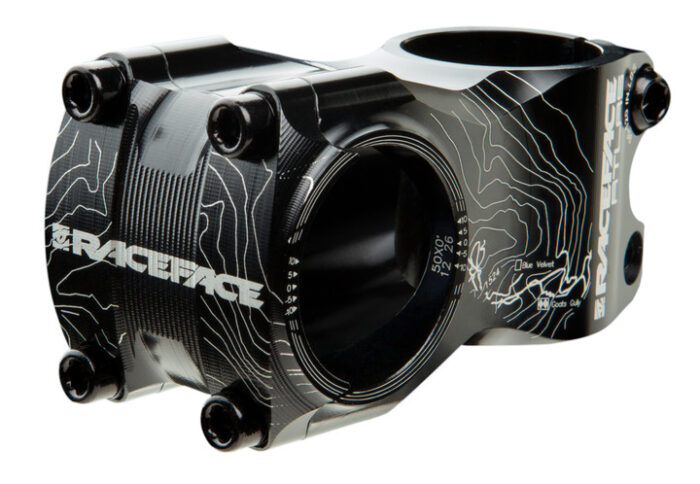

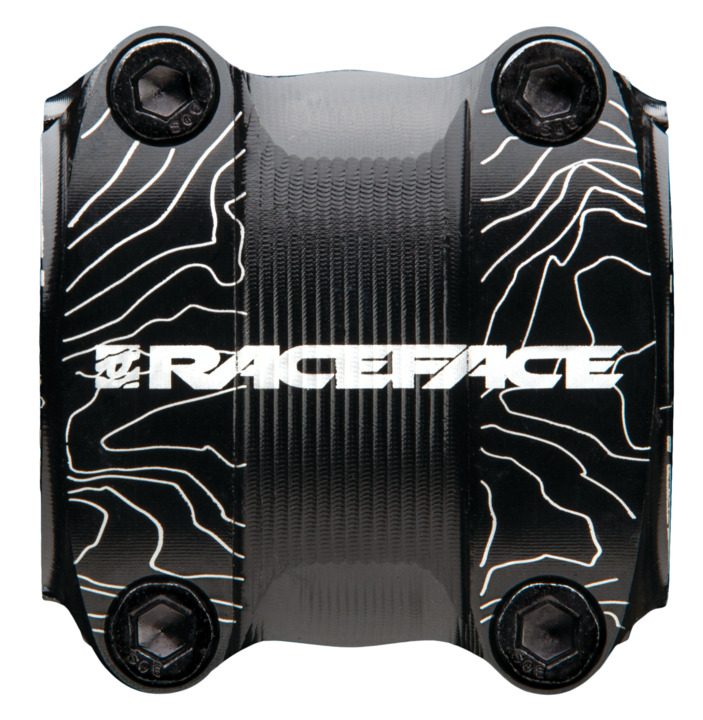

RACE FACE ATLAS 35 STEM

The Atlas 35 stem was designed to reduce overall system weight while retaining the proven stiffness and performance the Atlas line is known for. The stem itself is measurably stiffer than Race Face’s 31.8mm offering and, although the system seems to be a burlier build, the weight savings gained by the reduction in bar material makes the 35 system lighter overall. An impressively light, strong addition to an aggressive trail or DH/FR build.

6061-T6 aluminium
Four bolt bar clamp holds bar securely in position
Interlocking U-shaped handlebar clamp geometry
Faceplate eliminates stress risers which can cause the bar to bend or break
Opposing bolts on steer tube clamp provides extreme clamping power while reducing stress on the steer tube
Laser etched logos
Built for: Trail/AM/DH
Steer tube diameter: 1 1/8″
Stack: 40mm
Bar diameter: 35mm
Rise: 0
Weight: 141 grams (35mm), 160 grams (50mm), 181 grams (65mm)
Sizes: 35mm, 50mm, 65mm
