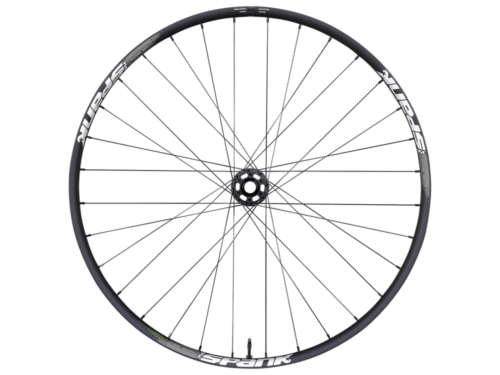

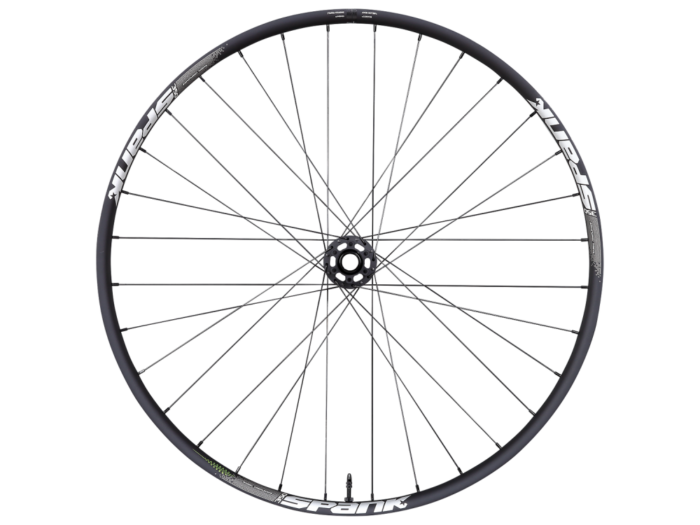

Low sectional profile height and wide width adds radial compliance while keeping high lateral stiffness, Negative offset spoke hole configuration further enhances radial compliance.

RIM DIMENSIONS: ID (mm): 30.5 OD (mm): 35
SPOKES: Straight pull, triple butted 2.2/1.8/2.0, alloy DSN nipples
TUBELESS: Tubeless equipped (tape and valves included)
CONFIGURATION: 32H – 3cross lacing
TECHNOLOGIES: Radial Compliance, Lateral Stiffness, BeadBite Anti-burp, OohBah Inverted Inner Wall
ADAPTORS AVAILABLE SEPARATELY: Rear: 10×135, 12×135 Front: QRx100, Boost 20×110

NEW HEX DRIVE 102T HUB WHEELS
All SPANK Vibrocore and Radially Compliant Wheels, SPIKE and OOZY Wheels, and GRAVEL Wheels, have been upgraded to SPANK’s all new HEX DRIVE 102T Hub system, with 3.5° Engagement, and 6 Pawl, 18 contact point drive system. HEX hub wheels feature upgraded seals, “Bite Block” alloy freehubs, oversized bearings and alloy axles, and a unique flange design which minimizes dish in wheels and the resulting spoke tension range.

ALL SPANK HEX HUB REAR WHEELS COME BLANK, THERE IS NO FREEHUB ATTACHED TO THE WHEEL. YOU MUST ORDER THE WHEEL AND A FREEHUB BODY TO GO WITH IT. WE CANNOT SUPPLY A WHEEL WITHOUT A FREEHUB BODY.
