2027 Commencal Meta Power SX Avinox M2S Frame

Commencal Meta Power SX Avinox M2S Frame – 2027

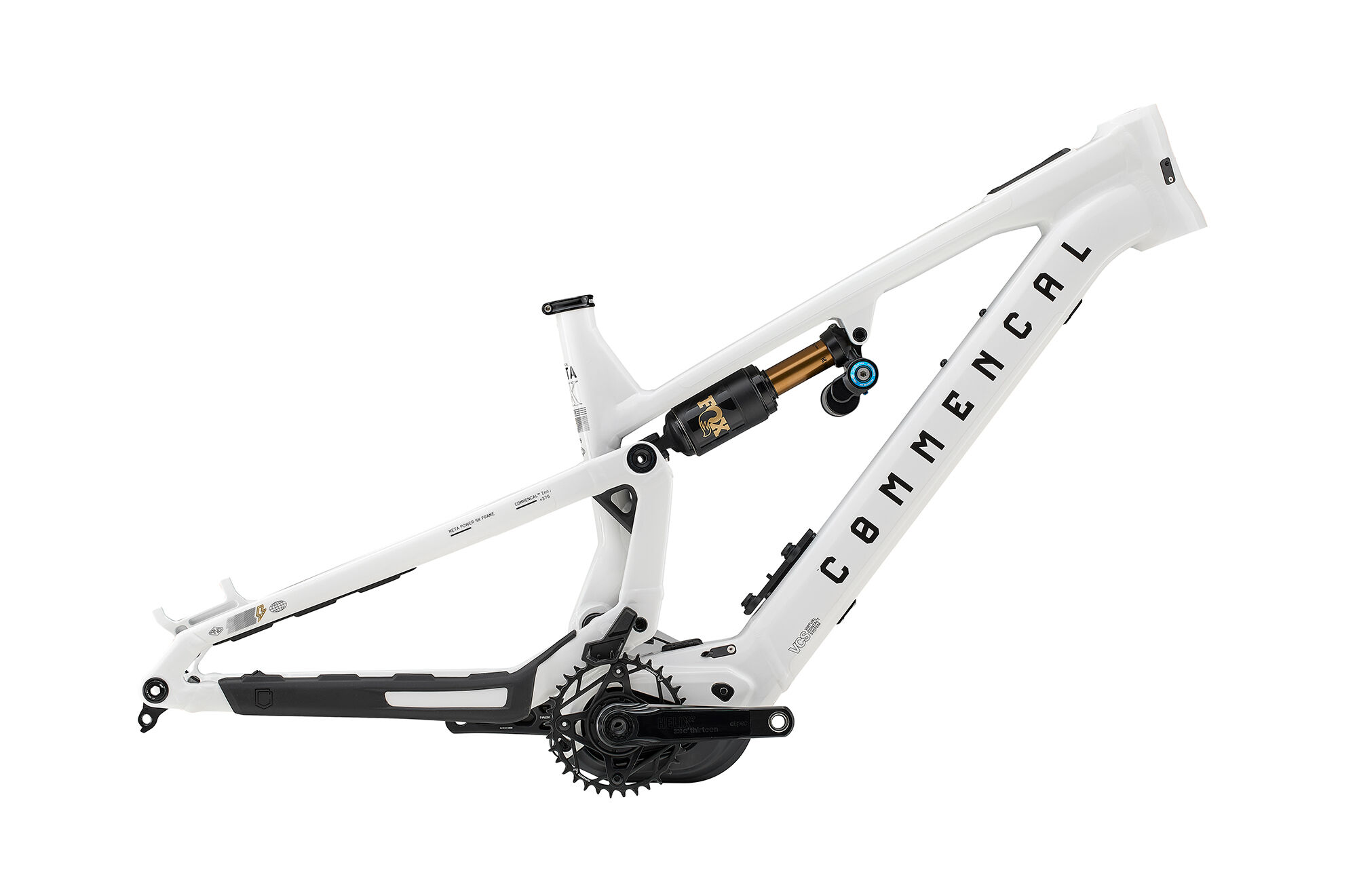

The Commencal VIP Meta Power SX Avinox frame is a motorised e-bike frameset kit, not a bare frame: an alloy enduro and freeride e-bike frame with 160mm of rear travel and a 29″ front / 27.5″ rear mullet format, supplied with the DJI Avinox M2S motor, a fixed Avinox battery, the Avinox touchscreen display, a Fox Float X2 Factory shock, headset, crankset and chain guide already in the kit. It is offered at outset.bike in two 2027 builds — Pure White in sizes S, M and L, and Pure Black in sizes S and M.

At outset.bike, we stock frames we genuinely believe in. This VIP frameset is the way to build the exact Avinox e-bike you want — the motor system, suspension heart and frame sorted by Commencal, with the fork, wheels and finishing kit your choice.

MOTOR, BATTERY & DISPLAY

The kit includes the Avinox M2S drive unit — 150Nm of peak torque with a 1,300W Boost mode, and 130Nm in normal operation. The battery is a fixed Avinox unit: 600Wh on size S and 800Wh on M and L, charged by the included Avinox 12A / 508W fast charger. The Avinox DP100 integrated colour touchscreen carries USB-C, GPS, a barometer, a compass, 4G connectivity and a theft alarm, paired with the Avinox BC100 wireless bar controller. A hub-mounted disc sensor and frame speed sensor are supplied. Why it matters: the Avinox system delivers full-power torque figures from a remarkably light package, and the kit arrives with every motor-system part fitted or boxed.

FRAME & SUSPENSION

Commencal builds the frame from 6066 alloy with T6 heat treatment, and it weighs 4.795kg. It delivers 160mm of rear travel through Commencal’s Virtual Contact System (VCS) linkage, and the kit includes a Fox Float X2 Factory shock (230 x 60mm), with a recommended sag of 29–32%. The frame is designed for a 160–170mm fork (576mm recommended fork height, 586mm maximum) and the 27.5″ rear wheel keeps the bike responsive and agile for its class.

CHOOSING YOUR BUILD

Pure White is offered in sizes S, M and L. Pure Black is offered in sizes S and M. The two are otherwise the same kit, with identical motor, battery, display, shock and included hardware.

SIZING & GEOMETRY

Reach runs 440mm on S, 460mm on M and 485mm on L, with a 64° head angle and 77.9° seat tube angle across sizes, and chainstays of 445mm (S and M) or 450mm (L). As a guide, S suits riders 160–171cm (5′3″–5′7″), M suits 170–181cm (5′7″–5′11″) and L suits 180–191cm (5′11″–6′3″). If you’re between sizes, get in touch and we’ll help you choose.

WHAT’S INCLUDED & WHAT’S NOT

Included in the kit: the Meta Power SX Avinox frame with fitted seat clamp, rear axle, UDH hanger, routing plugs and dropper outer cable; the Avinox M2S motor; the fixed Avinox battery (600Wh on S, 800Wh on M and L); the Avinox DP100 display and BC100 wireless controller; a Fox Float X2 Factory shock; an Acros ZS56/ZS66 stainless-bearing headset with spacers; an E13 Helix Race 155mm crankset with crank boots and crank tool, and a SRAM T-Type 34T chainring; a Commencal 34T chain guide; the Avinox 12A fast charger; full RideWrap protective film, a motor protector, chainstay and seatstay protectors, a Fidlock bottle base, an extra non-UDH hanger, and hub and frame speed sensors. Not included: fork, cockpit, drivetrain, brakes, seat post, saddle, pedals, and tyres or tubes — these are your choice. The Meta Power SX Avinox comes with a lifetime guarantee against manufacturing defects, exclusively for the original purchaser, with free Commencal Care support. If you want us to build it into a complete bike, or anything else about the VIP Meta Power SX Avinox frameset, get in touch at outset.bike.
