2026 Commencal Meta Power SX 800
Price range: $15,100.00 through $16,700.00
Get custom sizing & stock updates from our Auckland crew
✔ Online Exclusive.
✔ Buy Now – Delivery in 2 to 3 days
✖ Currently Out of Stock
✔ Buy Now to Backorder
✖ Currently Out of Stock
✔ Enquire Now to Backorder
✖ Currently Out of stock.
✔ In Store Pick Up Today
✔ Buy Now – Delivery in 2 to 3 days
Description and specifications
Description
Delivery included. Our prices can be slightly higher than those on the Commencal website because they include the shipping Commencal charges when you order direct. We deliver free to your door on orders over $150.
Commencal Meta Power SX 800 – 2026
The Commencal Meta Power SX 800 is an alloy enduro e-bike with 180mm of travel front and rear, a 29″ front wheel, a 27.5″ rear wheel and a Bosch Performance Line CX Gen5 motor paired with a fully integrated 800Wh Bosch PowerTube battery. It is offered at outset.bike in two 2026 builds — Signature in Pure Black and RockShox in Pure White — in sizes S, M, L and XL.
At outset.bike, we stock bikes we genuinely believe in. The Meta Power SX 800 is built for riders who want to go further — big-travel descending capability with the power and range to reach terrain a shuttle never will.
MOTOR, BATTERY & DISPLAY

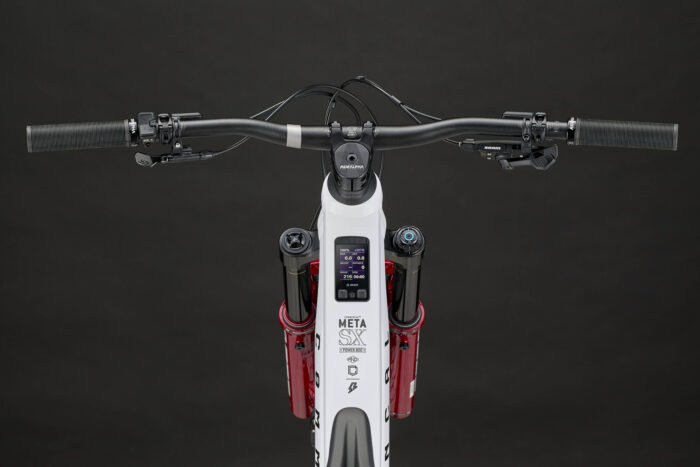

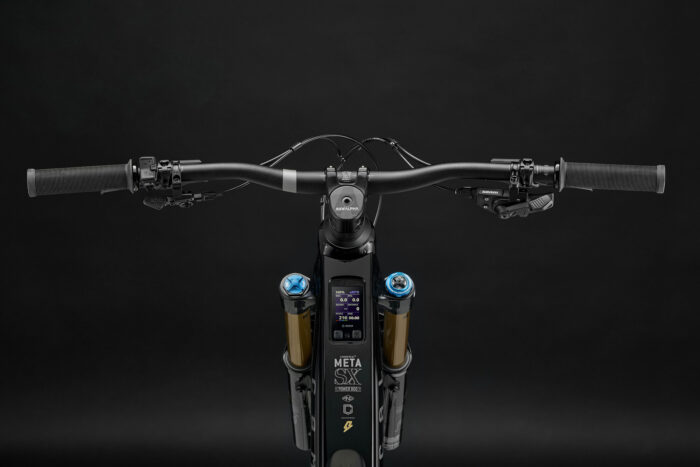

Every Meta Power SX 800 runs the Bosch Performance Line CX Gen5 motor, delivering 120Nm of torque, fed by the fully integrated Bosch PowerTube 800 battery with 800Wh of capacity — and the system accepts Bosch’s PowerMore 250Wh range extender when a ride demands even more. A compact Bosch 4A charger is supplied. On the bar, the Bosch Kiox 400C integrated colour display shows speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and navigation, controlled through the Bosch System Controller and Mini Remote with walk assist. Why it matters: 120Nm and 800Wh is a genuine full-power, full-day combination — steep climbs stop dictating where you ride.
A FULL-POWER MX ENDURO PLATFORM
The frame is Alloy 6066 with triple butted tubes, T4 and T6 heat treatment and Bolu bearings, carrying 180mm of rear travel on a 230 x 65mm shock behind a 180mm fork. Wheels are mixed — 29″ front for roll-over, 27.5″ rear for agility and clearance on steep terrain. Commencal recommends 28–31% shock sag (18–20mm). The 64.2° head angle keeps the front end calm at speed, and the frame is piggy-back shock compatible with internal cable routing. Why it matters: this is the geometry and travel of a serious gravity bike, with a motor — not a trail e-bike stretched beyond its limits.
CHOOSING YOUR BUILD

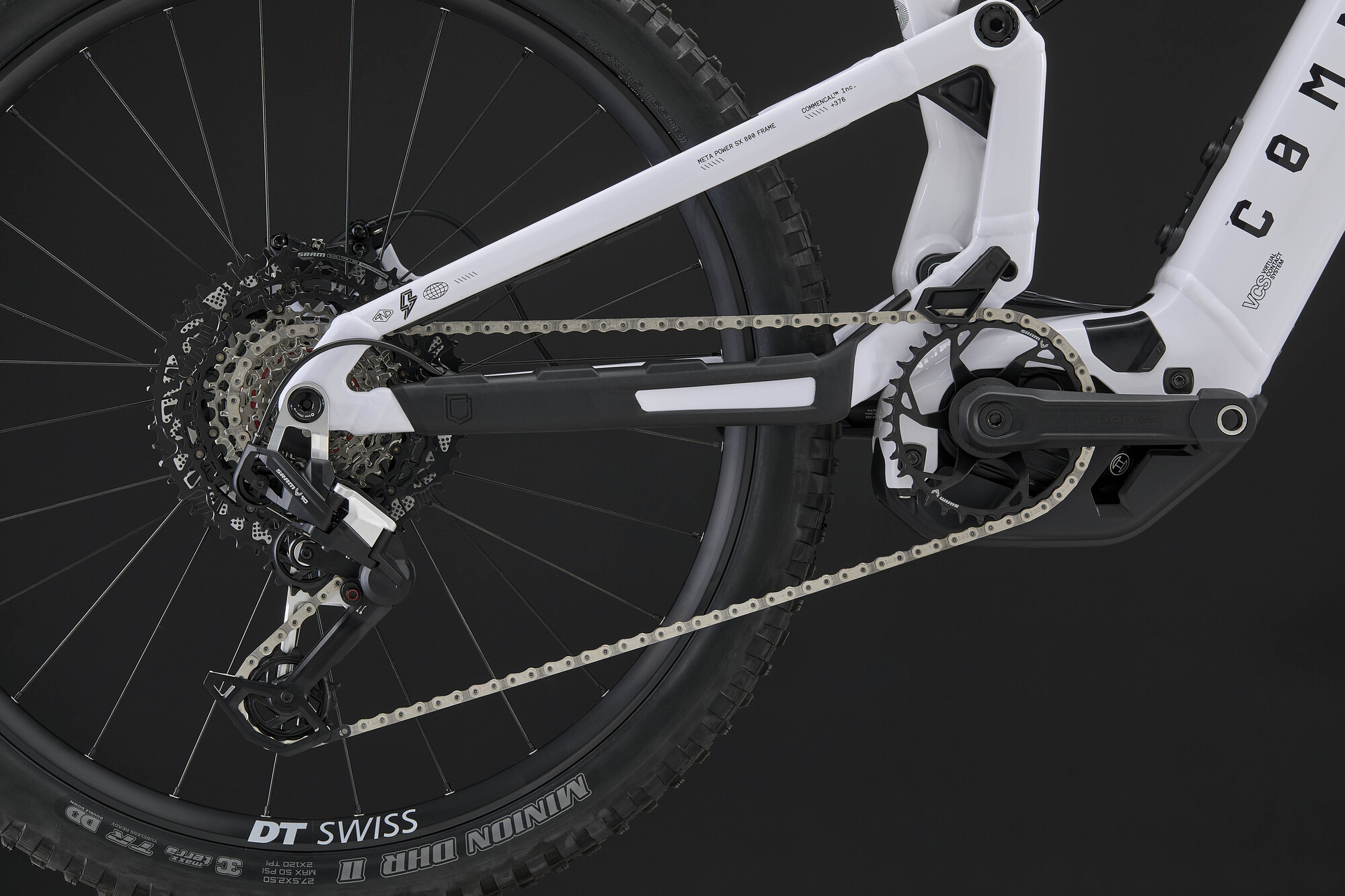

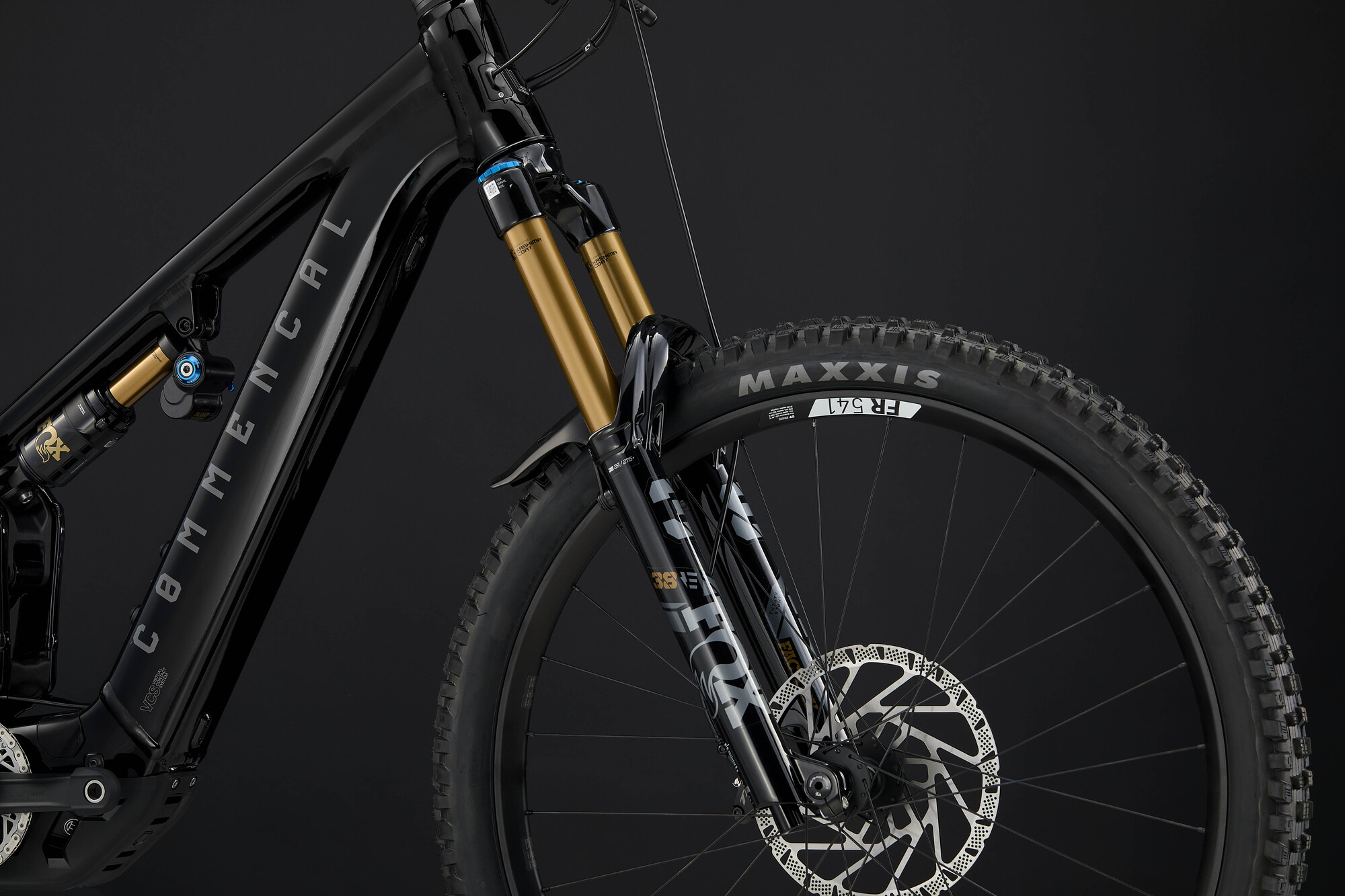

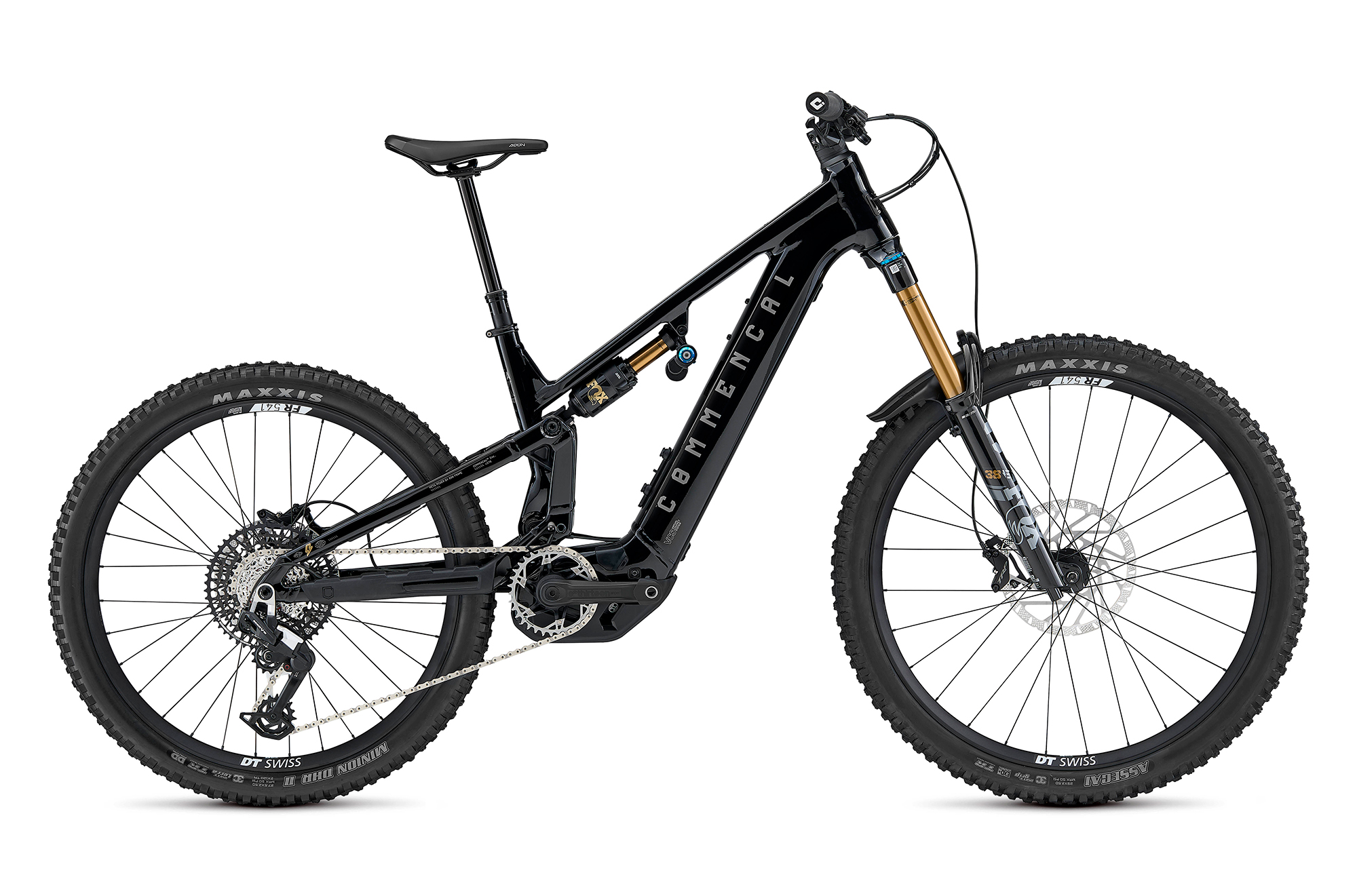

Signature – Pure Black is the top build: a Fox 38 Factory E-Bike fork with the Grip X2 damper and a Fox Float X2 Factory shock, both with high- and low-speed compression and rebound adjustment. Shifting is SRAM Eagle 90 12-speed with a SRAM GX T-Type cassette, and TRP DH-R EVO PRO 4-piston brakes run a 220mm front and 203mm rear rotor. DT Swiss FR541 rims on 370 Hybrid hubs, a OneUp V3 dropper, a Maxxis Assegai MaxxGrip front and Minion DHRII DoubleDown rear complete it, with RideWrap Lotus Pro protection film factory-applied.

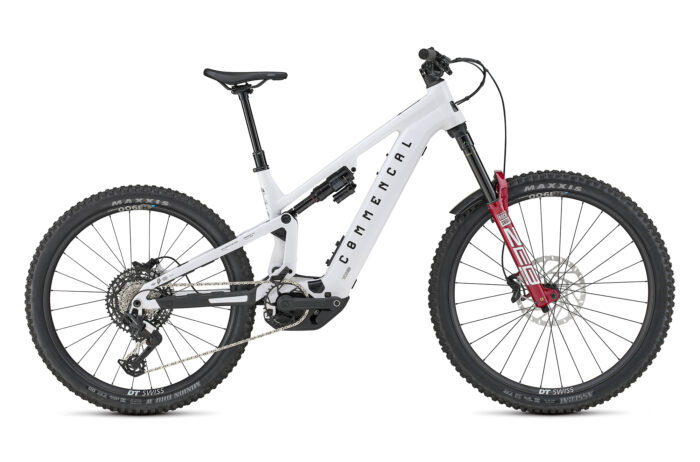

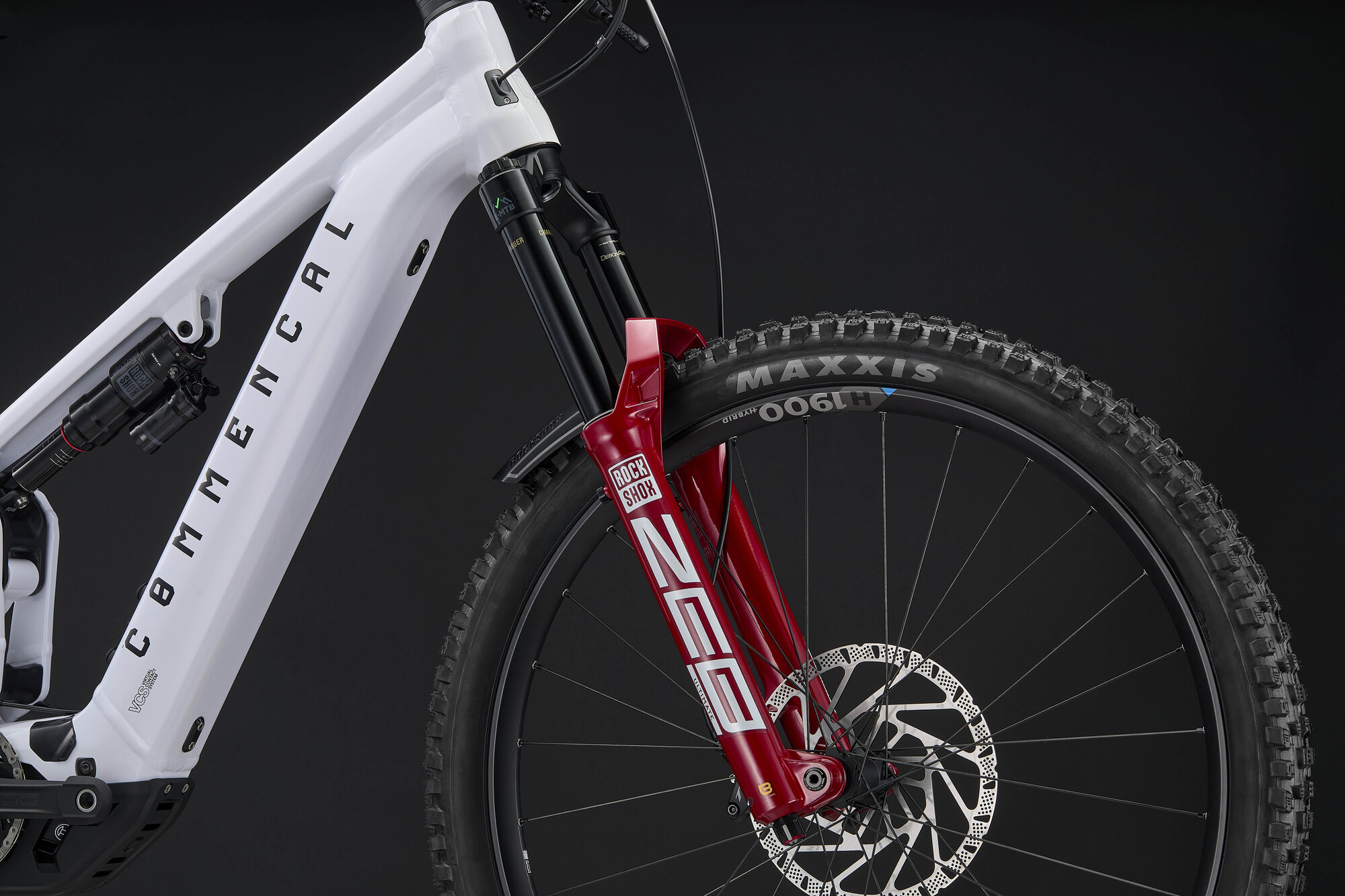

RockShox – Pure White pairs a RockShox Zeb Ultimate fork (Charger 3.1 damper) with a Super Deluxe Select shock. It shares the SRAM Eagle 90 12-speed drivetrain, TRP DH-R EVO PRO 4-piston brakes and Maxxis tyre pairing with the Signature, on DT Swiss H1900 rims with 370 hubs and a KS Ragei dropper. It also ships with RideWrap Lotus Pro film factory-applied.
SIZING & GEOMETRY
The Meta Power SX 800 comes in S, M, L and XL. Reach runs 433, 453, 480.2 and 505.2mm across the four sizes, with a 64.2° head angle and 77.5° seat tube angle throughout; chainstays are 445mm on S and M and 450mm on L and XL. As a guide, S suits riders 160–171cm (5′3″–5′7″), M suits 170–181cm (5′7″–5′11″), L suits 180–191cm (5′11″–6′3″) and XL suits 190–203cm (6′3″–6′8″). If you’re between sizes, get in touch and we’ll help you choose.
FRAME, STANDARDS & WHAT’S INCLUDED
The frame runs a UDH derailleur hanger, a ZS56/ZS66 headset, a Bosch CX Gen5 motor interface, a custom upper chain guide and a 148 x 12mm rear hub, and it clears a rear tyre up to 65mm wide. The rear brake mount is postmount 200mm with a 223mm maximum rotor, and the maximum chainring is 34T. Both builds ship with RideWrap Lotus Pro protection film factory-applied, a motor protector, chainstay and seatstay protectors, a Fidlock bottle base and a fork fender — and unusually for a bike at this level, Crankbrothers Stamp 1 pedals are included. The Meta Power SX 800 carries Commencal’s lifetime guarantee against manufacturing defects for the original purchaser, with free Commencal Care support. For anything else about the Meta Power SX 800, get in touch at outset.bike.
***features***
| Commencal Meta Power SX 800 Signature – Pure Black — Specifications | |
|---|---|
| Frame | Meta Power SX 800 alloy 6066, triple butted, T4/T6 – 180mm travel, 29″–27.5″ wheels |
| Motor | Bosch Performance Line CX Gen5 – 120Nm |
| Battery | Bosch PowerTube 800, fully integrated, 800Wh – Bosch 4A charger |

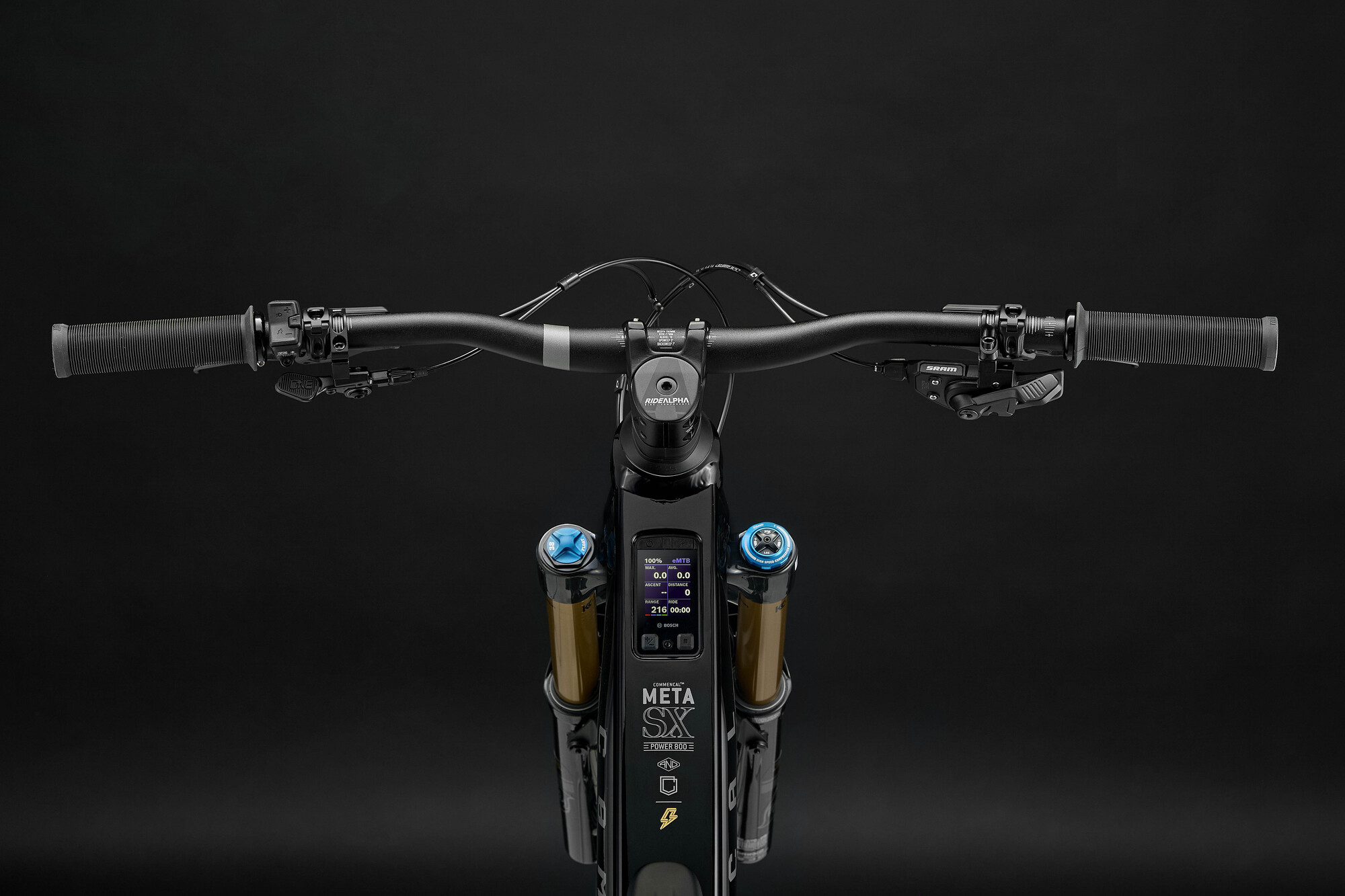

| Display | Bosch Kiox 400C colour display, System Controller, Mini Remote |
| Fork | Fox 38 Factory E-Bike 180mm, 29″ – Grip X2, HSC/LSC, HSR/LSR, Boost 15x110mm, 44mm offset |
| Rear Shock | Fox Float X2 Factory 230x65mm – 2-position, HSC/LSC, HSR/LSR |
| Brakes | TRP DH-R EVO PRO 4-piston, resin pads – TRP RS05 rotors, 220mm front / 203mm rear, 6-bolt |
| Shifter | SRAM Eagle 90, 12-speed |
| Rear Derailleur | SRAM Eagle 90, 12-speed |

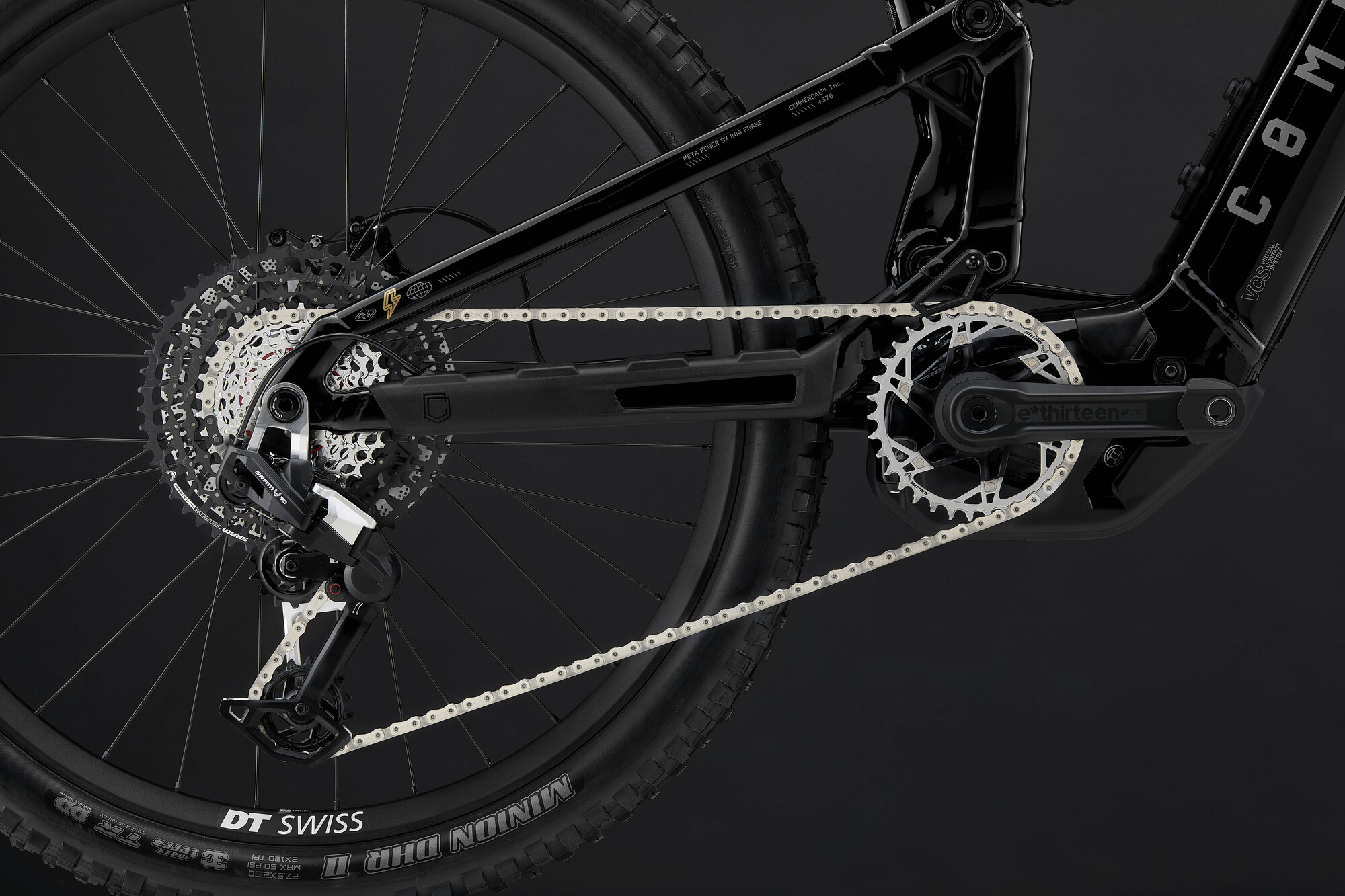

| Cassette | SRAM GX T-Type, 12-speed, 10–52T |
| Chain | SRAM GX T-Type, 12-speed, Flattop |
| Crankset | E13 Helix Core E*Spec, 155mm, Bosch – SRAM XX T-Type E-MTB 34T chainring, direct mount |
| Chain Guide | Ride Alpha, 32–34T |
| Rims | DT Swiss FR541 – front 29″, rear 27.5″, 28h, 30mm internal |
| Hubs | DT Swiss 370 Hybrid rear 12x148mm SRAM XD – DT Swiss 370 front 15x110mm |
| Spokes | Included with wheelset |
| Front Tyre | Maxxis Assegai 29×2.50 WT, 3C MaxxGrip, EXO+, tubeless ready |
| Rear Tyre | Maxxis Minion DHRII 27.5×2.50 WT, 3C MaxxTerra, DoubleDown, tubeless ready |

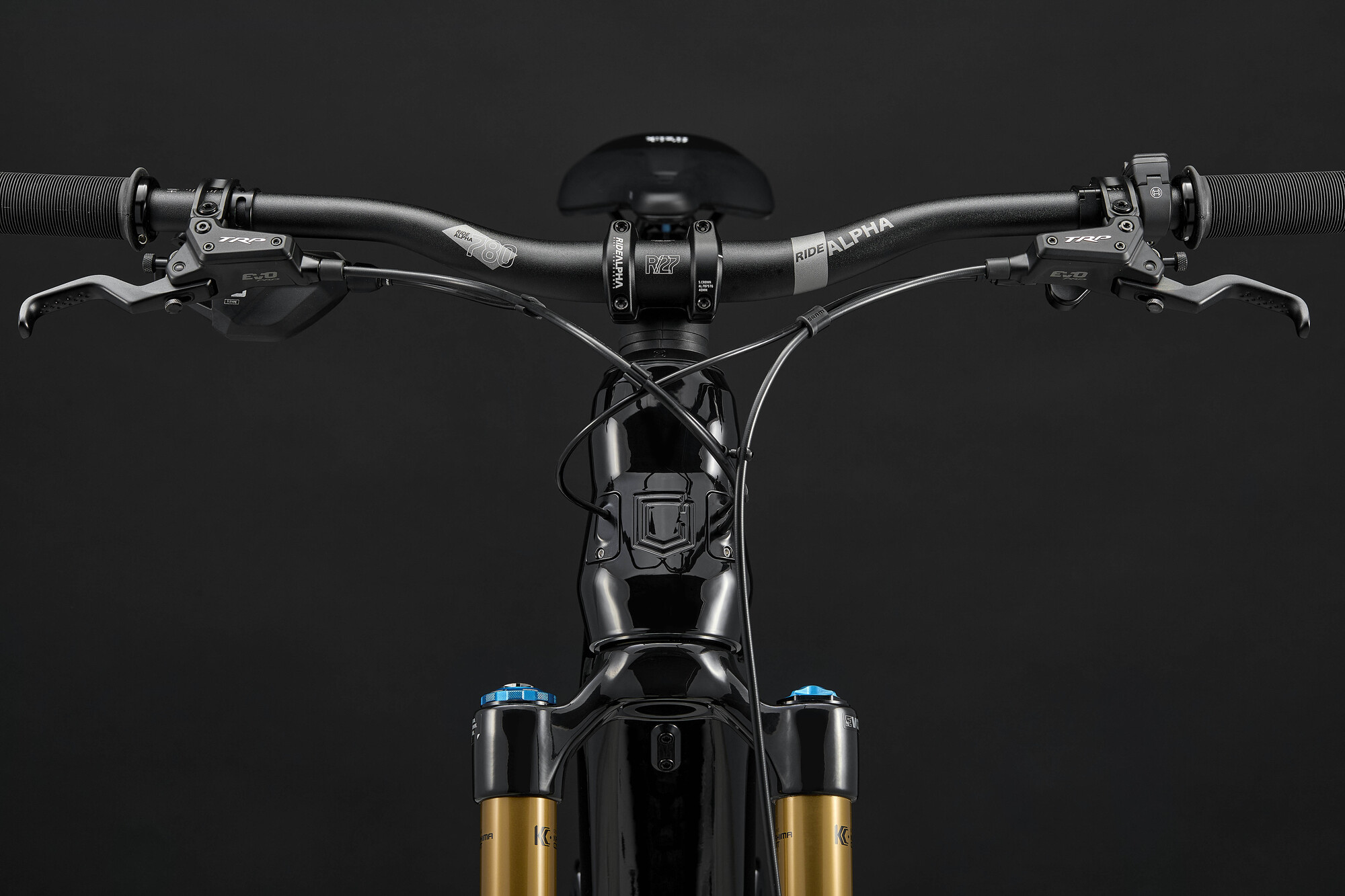

| Handlebar | Ride Alpha alloy 6061, 31.8mm – S 760mm/20mm rise, M–L 780mm/27mm rise, XL 800mm/27mm rise |
| Stem | Ride Alpha 40, 40mm, 31.8mm clamp |
| Grips | ODI Longneck 2.1, soft compound, single clamp |
| Seatpost | OneUp V3 dropper, 31.6mm – S 150 / M 180 / L–XL 210mm |
| Saddle | Fizik Terra Aidon X5, 145mm, Kium Mobius rails |
| Headset | Acros ZS56/ZS66, alloy cups, sealed bearings |
| Weight | 25.5kg (size S, without pedals) |
| Colour | Pure Black, shiny finish |
| Pedals | Crankbrothers Stamp 1, included |
| Included | RideWrap Lotus Pro film (factory-applied), motor/chainstay/seatstay protectors, Fidlock base, fork fender |
| Commencal Meta Power SX 800 RockShox – Pure White — Specifications | |
|---|---|
| Frame | Meta Power SX 800 alloy 6066, triple butted, T4/T6 – 180mm travel, 29″–27.5″ wheels |
| Motor | Bosch Performance Line CX Gen5 – 120Nm |
| Battery | Bosch PowerTube 800, fully integrated, 800Wh – Bosch 4A charger |
| Display | Bosch Kiox 400C colour display, System Controller, Mini Remote |
| Fork | RockShox Zeb Ultimate 180mm, 29″ – Charger 3.1, HSC/LSC, HSR/LSR, Boost 15x110mm, 44mm offset |
| Rear Shock | RockShox Super Deluxe Select 230x65mm – DebonAir+, 2-position, rebound |
| Brakes | TRP DH-R EVO PRO 4-piston, resin pads – TRP RS05 rotors, 220mm front / 203mm rear, 6-bolt |
| Shifter | SRAM Eagle 90, 12-speed |
| Rear Derailleur | SRAM Eagle 90, 12-speed |
| Cassette | SRAM XS 1270 T-Type, 12-speed, 10–52T |
| Chain | SRAM GX T-Type, 12-speed, Flattop |
| Crankset | E13 Helix Core E*Spec, 155mm, Bosch – SRAM E-MTB T-Type 34T chainring, direct mount |
| Chain Guide | Ride Alpha, 32–34T |
| Rims | DT Swiss H1900 – front 29″, rear 27.5″, 28h, 30mm internal |
| Hubs | DT Swiss 370 – rear 12x148mm SRAM XD, front 15x110mm |
| Spokes | Included with wheelset |
| Front Tyre | Maxxis Assegai 29×2.50 WT, 3C MaxxGrip, EXO+, tubeless ready |
| Rear Tyre | Maxxis Minion DHRII 27.5×2.50 WT, 3C MaxxTerra, DoubleDown, tubeless ready |
| Handlebar | Ride Alpha alloy 6061, 31.8mm – S 760mm/20mm rise, M–L 780mm/27mm rise, XL 800mm/27mm rise |
| Stem | Ride Alpha 40, 40mm, 31.8mm clamp |
| Grips | Ride Alpha Mushroom, soft compound, single clamp |
| Seatpost | KS Ragei dropper, 34.9mm – S 125 / M 170 / L–XL 190mm |
| Saddle | Fizik Terra Aidon X5, 145mm, Kium Mobius rails |
| Headset | Acros ZS56/ZS66, alloy cups, sealed bearings |
| Weight | 25.5kg (size S, without pedals) |
| Colour | Pure White, shiny finish |
| Pedals | Crankbrothers Stamp 1, included |
| Included | RideWrap Lotus Pro film (factory-applied), motor/chainstay/seatstay protectors, Fidlock base, fork fender |
Technical specifications
*
| Commencal Meta Power SX 800 Signature – Pure Black — Specifications | |
|---|---|
| Frame | Meta Power SX 800 alloy 6066, triple butted, T4/T6 – 180mm travel, 29″–27.5″ wheels |
| Motor | Bosch Performance Line CX Gen5 – 120Nm |
| Battery | Bosch PowerTube 800, fully integrated, 800Wh – Bosch 4A charger |
| Display | Bosch Kiox 400C colour display, System Controller, Mini Remote |
| Fork | Fox 38 Factory E-Bike 180mm, 29″ – Grip X2, HSC/LSC, HSR/LSR, Boost 15x110mm, 44mm offset |
| Rear Shock | Fox Float X2 Factory 230x65mm – 2-position, HSC/LSC, HSR/LSR |
| Brakes | TRP DH-R EVO PRO 4-piston, resin pads – TRP RS05 rotors, 220mm front / 203mm rear, 6-bolt |
| Shifter | SRAM Eagle 90, 12-speed |
| Rear Derailleur | SRAM Eagle 90, 12-speed |
| Cassette | SRAM GX T-Type, 12-speed, 10–52T |
| Chain | SRAM GX T-Type, 12-speed, Flattop |
| Crankset | E13 Helix Core E*Spec, 155mm, Bosch – SRAM XX T-Type E-MTB 34T chainring, direct mount |
| Chain Guide | Ride Alpha, 32–34T |
| Rims | DT Swiss FR541 – front 29″, rear 27.5″, 28h, 30mm internal |
| Hubs | DT Swiss 370 Hybrid rear 12x148mm SRAM XD – DT Swiss 370 front 15x110mm |
| Spokes | Included with wheelset |
| Front Tyre | Maxxis Assegai 29×2.50 WT, 3C MaxxGrip, EXO+, tubeless ready |
| Rear Tyre | Maxxis Minion DHRII 27.5×2.50 WT, 3C MaxxTerra, DoubleDown, tubeless ready |
| Handlebar | Ride Alpha alloy 6061, 31.8mm – S 760mm/20mm rise, M–L 780mm/27mm rise, XL 800mm/27mm rise |
| Stem | Ride Alpha 40, 40mm, 31.8mm clamp |
| Grips | ODI Longneck 2.1, soft compound, single clamp |
| Seatpost | OneUp V3 dropper, 31.6mm – S 150 / M 180 / L–XL 210mm |
| Saddle | Fizik Terra Aidon X5, 145mm, Kium Mobius rails |
| Headset | Acros ZS56/ZS66, alloy cups, sealed bearings |
| Weight | 25.5kg (size S, without pedals) |
| Colour | Pure Black, shiny finish |
| Pedals | Crankbrothers Stamp 1, included |
| Included | RideWrap Lotus Pro film (factory-applied), motor/chainstay/seatstay protectors, Fidlock base, fork fender |
| Commencal Meta Power SX 800 RockShox – Pure White — Specifications | |
|---|---|
| Frame | Meta Power SX 800 alloy 6066, triple butted, T4/T6 – 180mm travel, 29″–27.5″ wheels |
| Motor | Bosch Performance Line CX Gen5 – 120Nm |
| Battery | Bosch PowerTube 800, fully integrated, 800Wh – Bosch 4A charger |
| Display | Bosch Kiox 400C colour display, System Controller, Mini Remote |
| Fork | RockShox Zeb Ultimate 180mm, 29″ – Charger 3.1, HSC/LSC, HSR/LSR, Boost 15x110mm, 44mm offset |
| Rear Shock | RockShox Super Deluxe Select 230x65mm – DebonAir+, 2-position, rebound |
| Brakes | TRP DH-R EVO PRO 4-piston, resin pads – TRP RS05 rotors, 220mm front / 203mm rear, 6-bolt |
| Shifter | SRAM Eagle 90, 12-speed |
| Rear Derailleur | SRAM Eagle 90, 12-speed |
| Cassette | SRAM XS 1270 T-Type, 12-speed, 10–52T |
| Chain | SRAM GX T-Type, 12-speed, Flattop |
| Crankset | E13 Helix Core E*Spec, 155mm, Bosch – SRAM E-MTB T-Type 34T chainring, direct mount |
| Chain Guide | Ride Alpha, 32–34T |
| Rims | DT Swiss H1900 – front 29″, rear 27.5″, 28h, 30mm internal |
| Hubs | DT Swiss 370 – rear 12x148mm SRAM XD, front 15x110mm |
| Spokes | Included with wheelset |
| Front Tyre | Maxxis Assegai 29×2.50 WT, 3C MaxxGrip, EXO+, tubeless ready |
| Rear Tyre | Maxxis Minion DHRII 27.5×2.50 WT, 3C MaxxTerra, DoubleDown, tubeless ready |
| Handlebar | Ride Alpha alloy 6061, 31.8mm – S 760mm/20mm rise, M–L 780mm/27mm rise, XL 800mm/27mm rise |
| Stem | Ride Alpha 40, 40mm, 31.8mm clamp |
| Grips | Ride Alpha Mushroom, soft compound, single clamp |
| Seatpost | KS Ragei dropper, 34.9mm – S 125 / M 170 / L–XL 190mm |
| Saddle | Fizik Terra Aidon X5, 145mm, Kium Mobius rails |
| Headset | Acros ZS56/ZS66, alloy cups, sealed bearings |
| Weight | 25.5kg (size S, without pedals) |
| Colour | Pure White, shiny finish |
| Pedals | Crankbrothers Stamp 1, included |
| Included | RideWrap Lotus Pro film (factory-applied), motor/chainstay/seatstay protectors, Fidlock base, fork fender |
