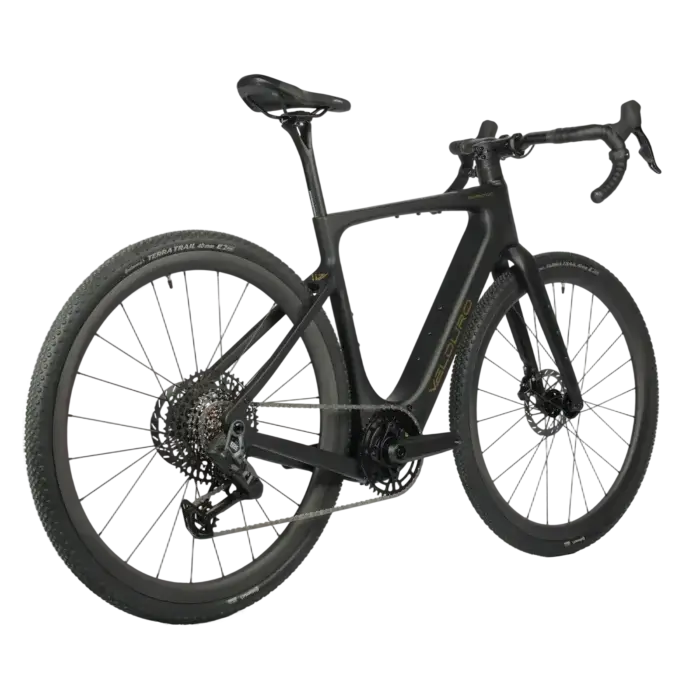

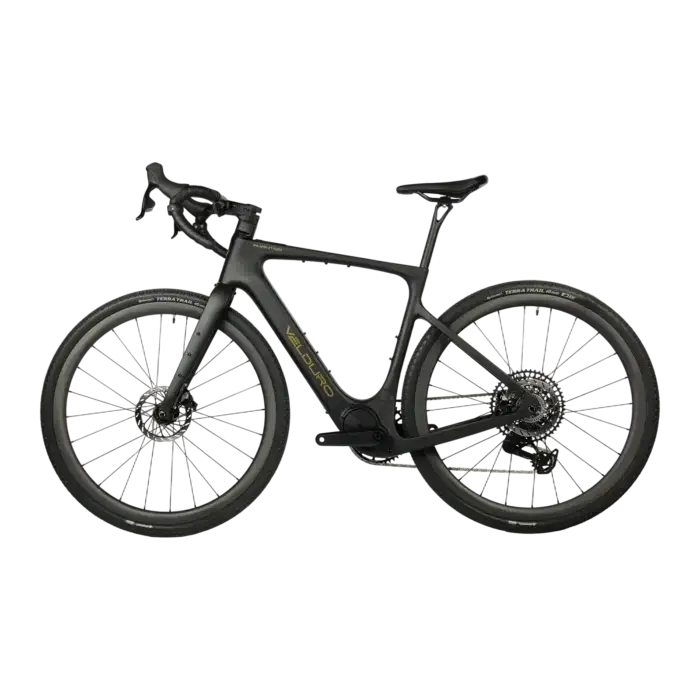

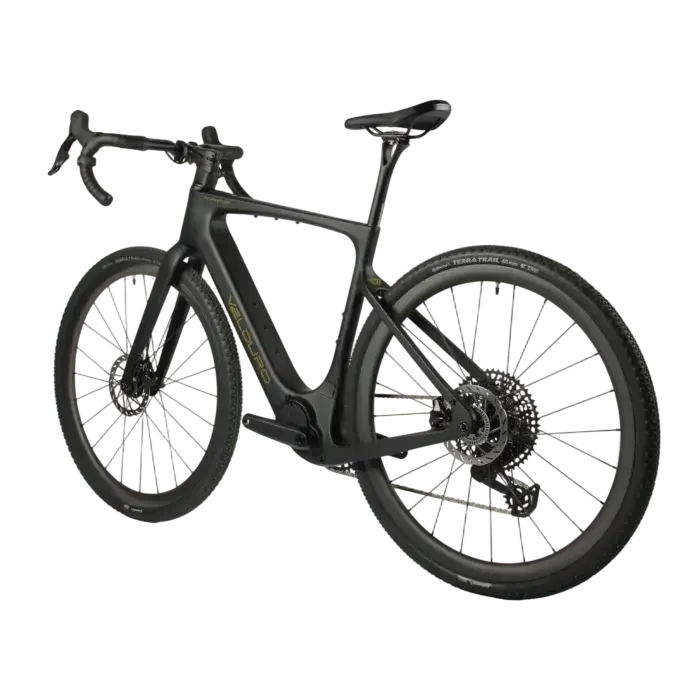

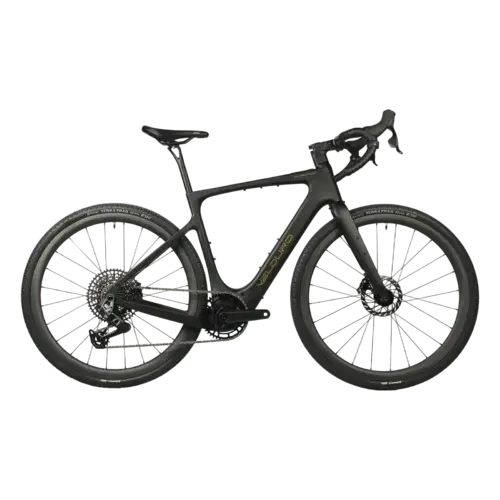

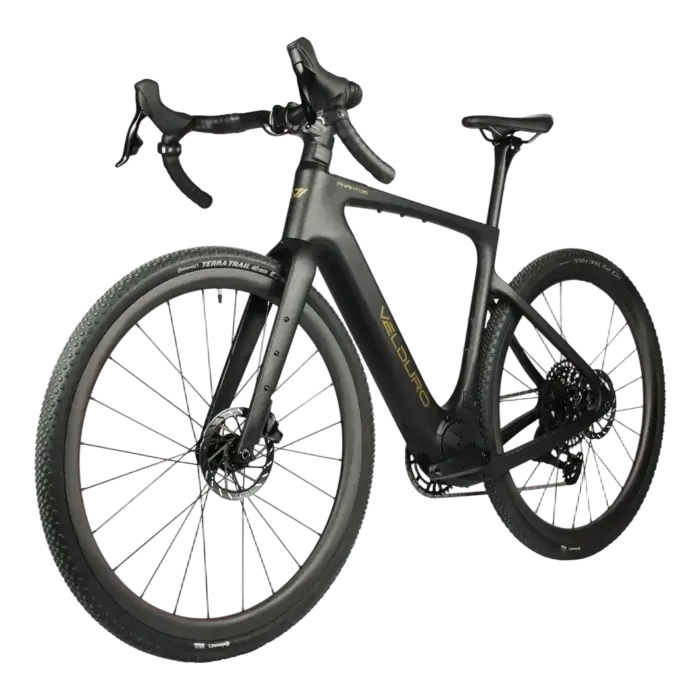

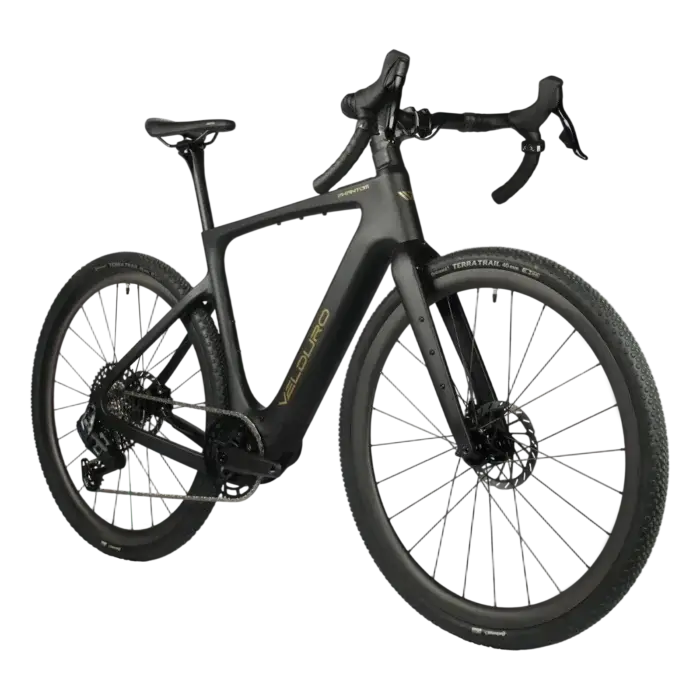

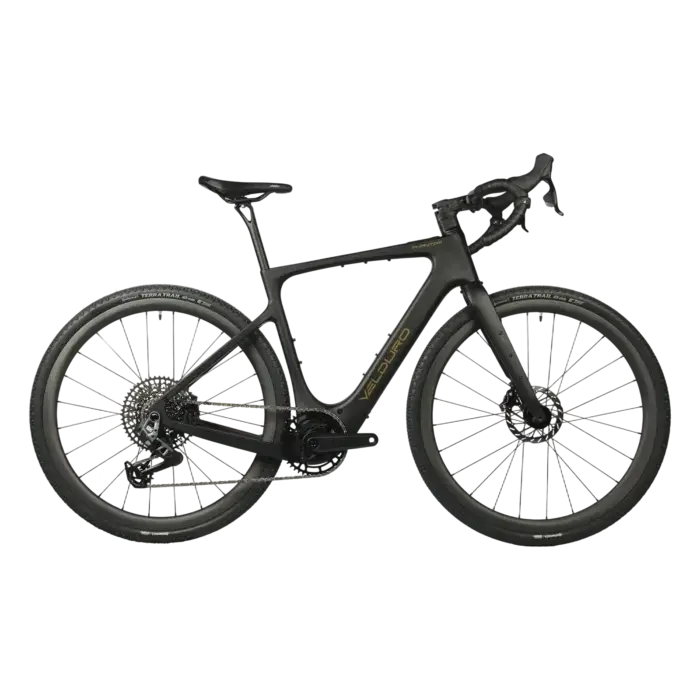

Velduro Phantom X Gravel

Velduro Phantom X E-Gravel – Award-Winning Carbon E-Gravel Bike | Avinox M2 Powered

Explore Further. Ride Faster. No Compromises.

The Velduro Phantom X is an award-winning e-gravel machine built with gravel riders, for gravel riders. Developed to handle everything from fast-rolling backroads to loaded overnight bikepacking missions, the Phantom X pairs a lightweight full carbon frame with the Avinox M2 drive system to deliver a ride that’s fast, capable, and ready for any terrain you point it at.

Nothing about this build is an afterthought. A SRAM Rival XPLR AXS 13-speed wireless drivetrain and SRAM Rival AXS HRD brakes give you precise, dependable shifting and stopping power, while eight frame mounting points and six fork mounting points mean you can rack up bags, bottles, and gear for multi-day adventures without compromise. Full carbon wheels, a wide 45C tyre, and integrated battery keep the Phantom X sleek, fast, and genuinely ready to explore.

AVINOX M2 DRIVE SYSTEM

The Phantom X is powered by the Avinox M2 motor, delivering 120Nm of continuous torque and boosting to 125Nm with 1,100W of peak power – enough assistance to make long gravel days and loaded bikepacking climbs feel effortless. The system runs on a fully integrated 36V 600Wh battery, managed through the Avinox DP100 display and topped up with the included 4A 168W charger.

FULL CARBON GRAVEL FRAME & FORK

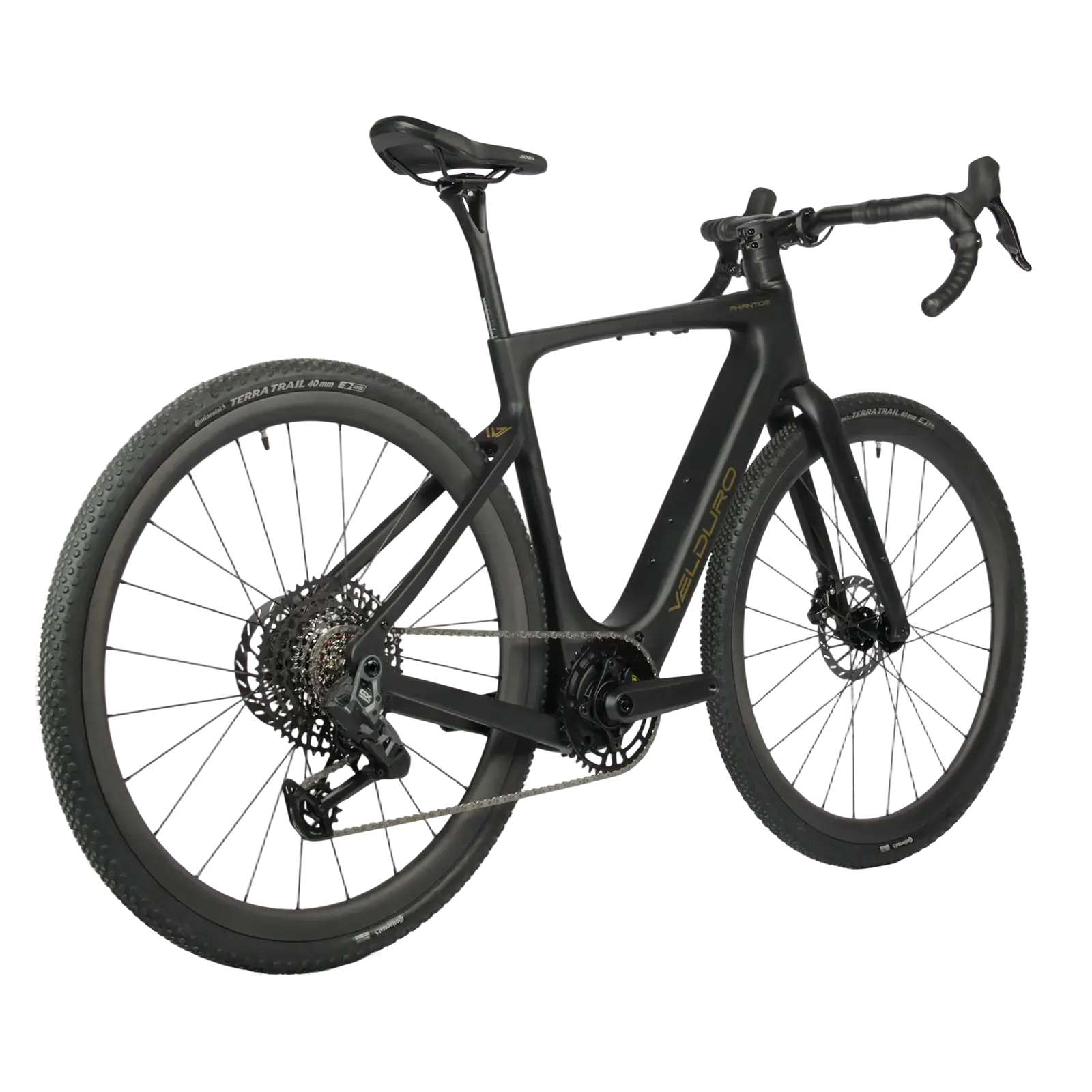

Built around a carbon fibre gravel frame with an integrated battery and internal cable routing, the Phantom X keeps weight low while staying stiff and efficient underfoot. The matching carbon gravel fork, 12x142mm rear and 12x100mm front thru-axles, and clean cable routing round out a frame designed specifically for long-distance, load-carrying gravel riding.

SRAM RIVAL XPLR AXS 13-SPEED DRIVETRAIN

Shifting is handled by a SRAM Rival XPLR AXS wireless 13-speed transmission with a wide-range cassette, giving you the gear spread to climb loaded and spin out on the flats. SRAM Rival AXS HRD hydraulic disc brakes with 160mm rotors front and rear provide confident, consistent stopping power whatever the conditions.

BUILT FOR BIKEPACKING & ADVENTURE

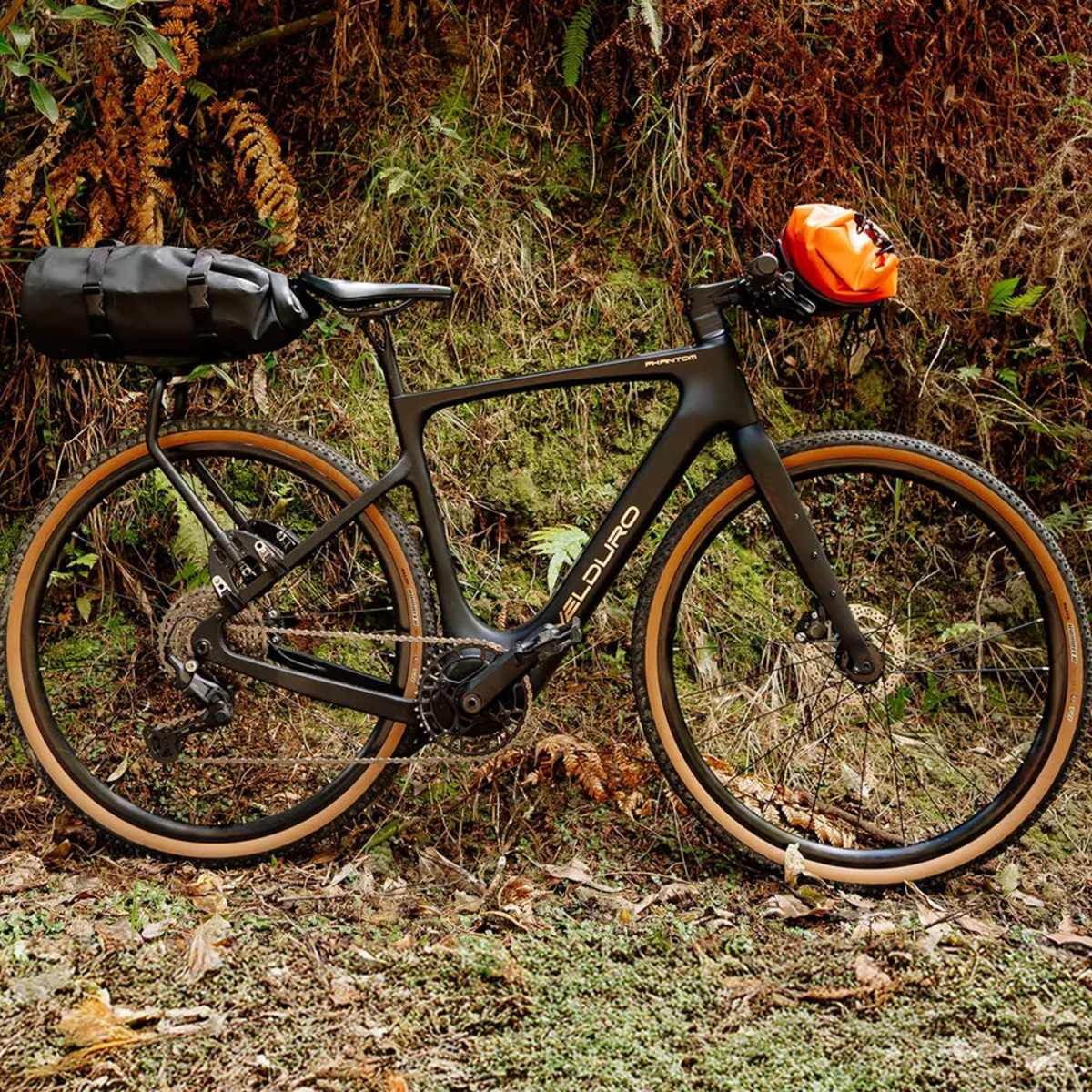

With eight mounting points on the frame and six on the fork, the Phantom X is set up to carry everything you need for multi-day adventures. Tubeless-ready carbon wheels wrapped in 700x45C Maxxis Rambler tyres roll fast on the road and stay planted when the surface turns rough.

WARRANTY & PEACE OF MIND

Every Phantom X is backed by a 5-year frame warranty and 2 years of cover on the Avinox drive system, giving you confidence in a bike built to go the distance.

Specifications

Frame, Fork, Saddle & Cockpit

• Frame: Carbon fibre, gravel category, integrated battery, internal cable routing, 12x142mm rear, 8 mounting points, rack compatible
• Fork: Carbon gravel fork, 6 mounting points, 12x100mm, 50mm offset
• Headset: FSA No.55R 1.5″/55B ACR, alloy gravel
• Stem: FSA SMR alloy, -6°, length S:70mm / M:80mm / L:90mm / XL:100mm
• Saddle: Fizik Terra Aidon X5
• Seatpost: Velduro carbon, 27.2mm, 380mm
• Handlebar: Velduro carbon, 31.8mm, 15° flare, width S/M 420mm, L/XL 440mm
• Straps: Velduro black gravel strap

Drive Train & Brakes

• Brakes: SRAM Rival AXS HRD shift-brake system
• Discs: SRAM HS2 extreme duty, 160mm front / 160mm rear
• Rear derailleur: SRAM Rival XPLR AXS, with power cable
• Cassette: SRAM Rival XPLR XG-1351, 13-speed
• Cranks: Avinox SL, 165mm
• Chain: SRAM Rival Transmission Flattop
• Spider: Avinox 104BCD
• Chainwheel: Velduro customised alloy, 44T

Wheels & Tyres

• Front hub: Velduro, 2-bearing, 6-bolt, 13G/24H, 12x100mm
• Rear hub: Velduro, 4-bearing, 6-bolt, 13G/24H, 12x142mm, XDR freehub
• Rims: 700C, Velduro carbon, UD black, 13G/24H, 24mm internal width, 35mm depth, hooked
• Tyres: Maxxis Rambler 700x45C, supplied with tube
• Tubeless-ready (supplied with tube)

Avinox Drive System

• Motor: Avinox M2, 250W nominal, 120Nm continuous torque, boost to 125Nm, 1,100W peak power
• Battery: Avinox 36V, 600Wh, fully integrated

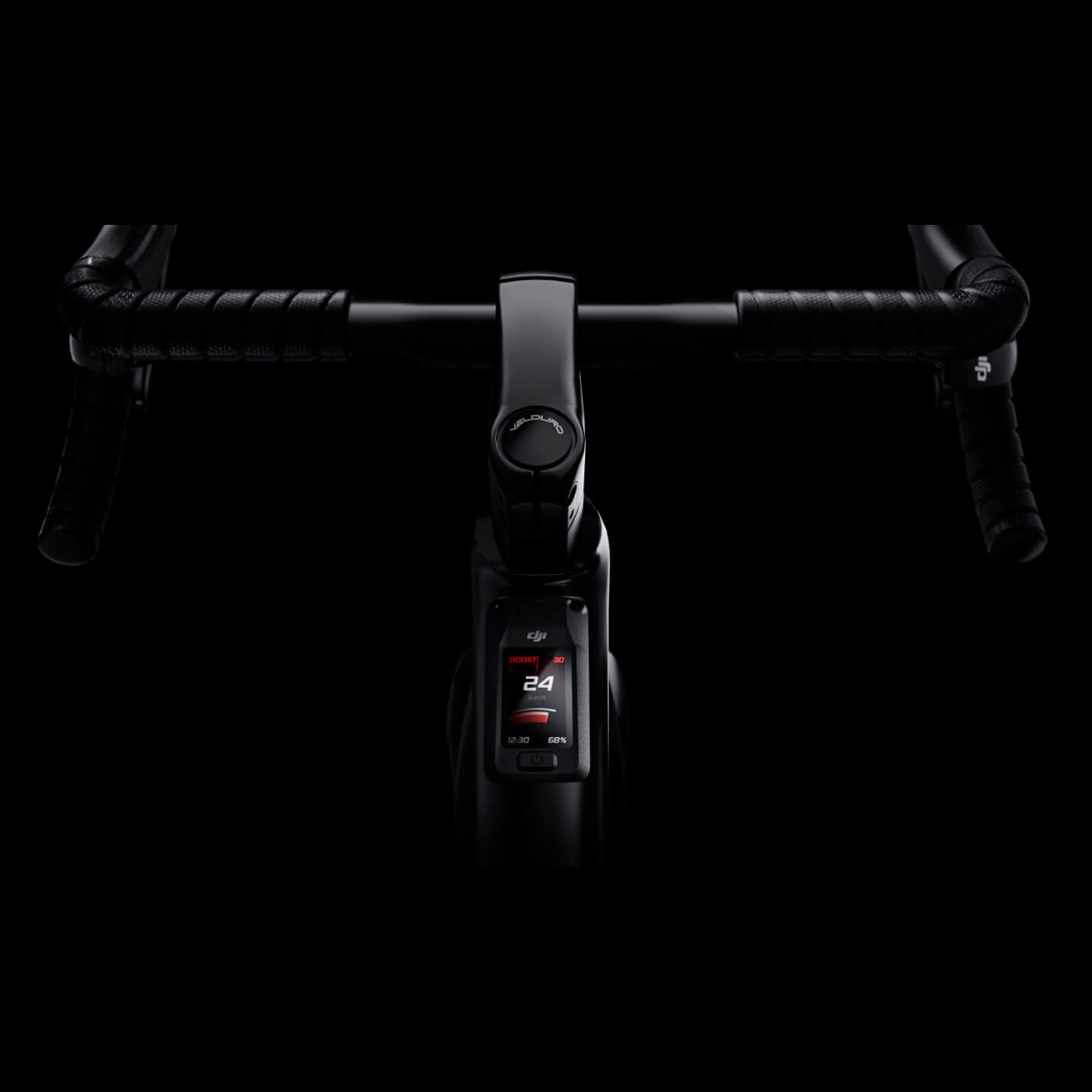

• Display: Avinox DP100
• Charger: Avinox 4A, 168W

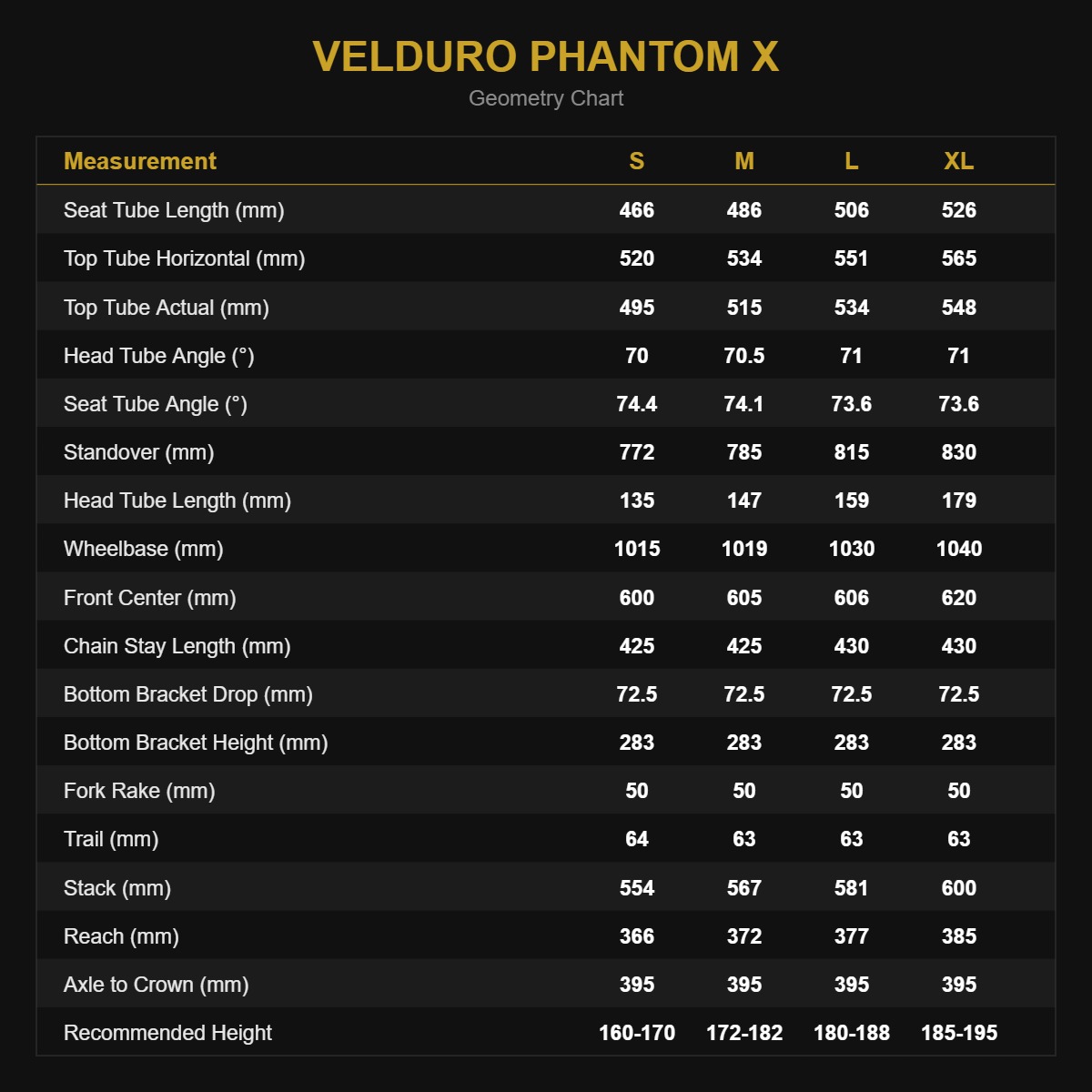

Geometry Overview (Small / Medium / Large / XL)

• Head tube angle: 70 / 70.5 / 71 / 71°
• Seat tube angle: 74.4 / 74.1 / 73.6 / 73.6°
• Reach: 366 / 372 / 377 / 385mm
• Stack: 554 / 567 / 581 / 600mm
• Top tube (horizontal): 520 / 534 / 551 / 565mm
• Chainstay length: 425 / 425 / 430 / 430mm
• Wheelbase: 1,015 / 1,019 / 1,030 / 1,040mm
• Bottom bracket height: 283mm (all sizes)
• Recommended rider height: 160–170cm / 172–182cm / 180–188cm / 185–195cm

Warranty

• Frame: 5 years
• Avinox drive system: 2 years

FAQs – Velduro Phantom X E-Gravel

What is the Velduro Phantom X?
The Velduro Phantom X is a carbon fibre e-gravel bike powered by the Avinox M2 drive system, built with a SRAM Rival XPLR AXS 13-speed drivetrain, carbon wheels, and extensive bikepacking mounts for riders who want to explore further and faster.

What motor and battery power the Phantom X?
The Phantom X runs the Avinox M2 motor, producing 120Nm of continuous torque (125Nm boosted) and 1,100W of peak power, paired with a fully integrated 600Wh battery and controlled via the Avinox DP100 display.

Is the Phantom X suitable for bikepacking?
Yes. The Phantom X has eight mounting points on the frame and six on the fork, along with rack compatibility, making it a genuine option for loaded multi-day bikepacking and adventure riding.

What drivetrain and brakes does the Phantom X use?
The Phantom X is equipped with a SRAM Rival XPLR AXS wireless 13-speed drivetrain and SRAM Rival AXS HRD hydraulic disc brakes with 160mm rotors front and rear.

What tyres does the Phantom X come with?
The Phantom X rolls on tubeless-ready carbon wheels fitted with Maxxis Rambler 700x45C tyres, giving a good balance of speed on hardpack and control on rougher gravel.

What sizes is the Phantom X available in?
The Phantom X is available in Small, Medium, Large, and Xtra Large, covering riders from approximately 160cm to 195cm tall. Full geometry details are listed above.

What warranty comes with the Phantom X?
The Phantom X is covered by a 5-year frame warranty and 2 years of cover on the Avinox drive system.
