Velduro Rogue R

Velduro Rogue R eMTB – Gold Award-Winning Enduro E-MTB | Avinox M2S Powered

Ride Harder. Climb Faster. Descend With Confidence.

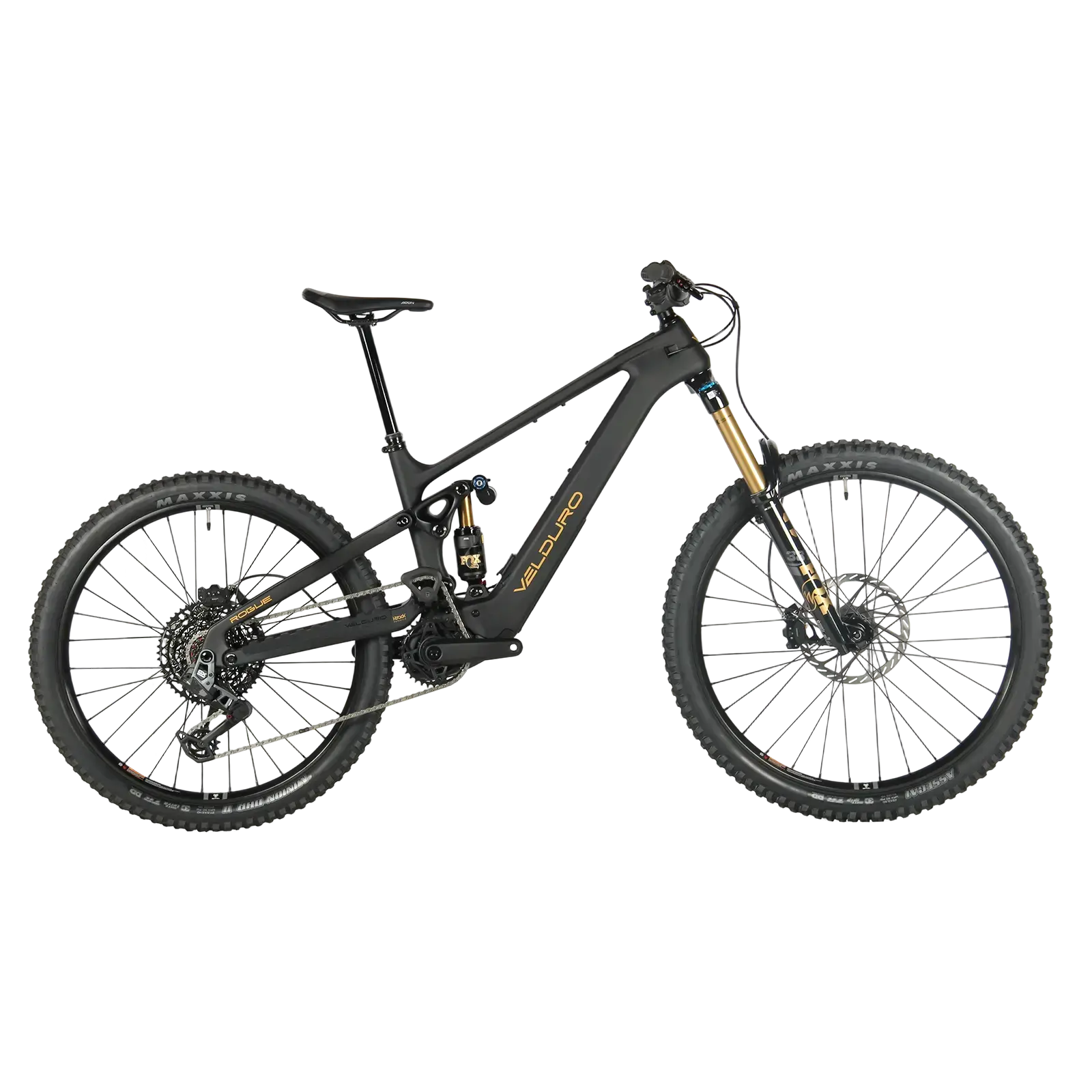

The Velduro Rogue R is a complete, race-ready enduro e-MTB built for riders who refuse to hold back. Wrapped around a lightweight carbon fibre monocoque frame and driven by the industry-leading Avinox M2S motor, the Rogue R pairs explosive power with a premium, pro-spec build so you can push further into bigger terrain with total confidence. From technical climbs to steep, fast descents, every part of this bike has been chosen to help you ride harder and recover faster between runs.

This isn’t a stripped-back frame – the Rogue R arrives fully built with custom-tuned FOX suspension, a SRAM AXS GX Eagle wireless transmission, and SRAM Maven Silver four-piston brakes for serious stopping power. At just 23.6kg, it’s remarkably light for a full-power enduro e-MTB, and the integrated 800Wh Avinox battery is engineered to keep you riding all day, wherever the trail takes you.

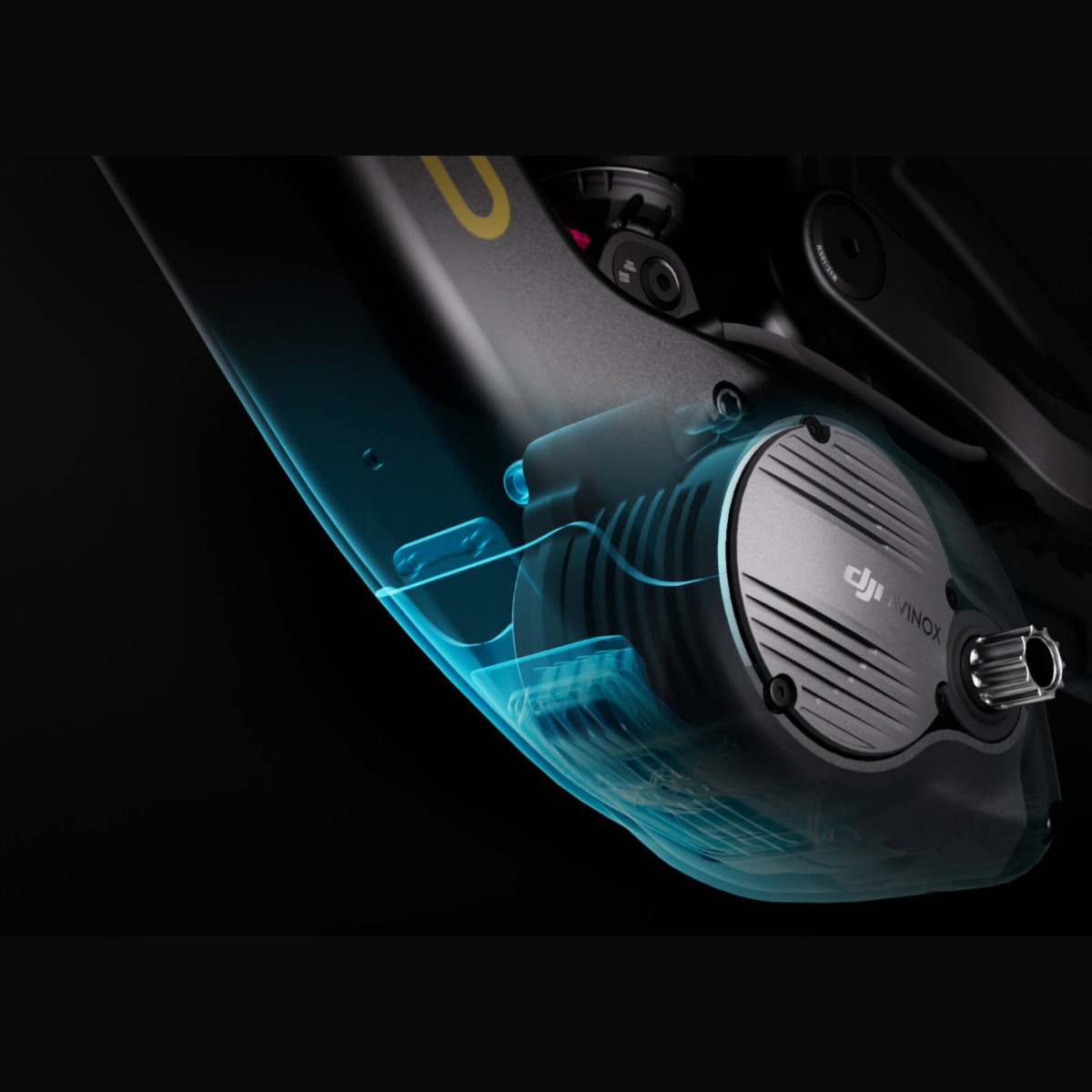

AVINOX M2S DRIVE SYSTEM

The Rogue R is powered by the Avinox M2S motor, producing 130Nm of continuous torque and boosting to 150Nm with 1,300W of peak power – enough to power through steep, technical climbs without breaking a sweat. The system runs on a fully integrated 36V 800Wh battery, controlled through a crisp Avinox DP100 display and charged via the included 4A 168W fast charger, so you spend less time waiting around and more time riding.

I-TRACK MID-PIVOT SUSPENSION

Velduro’s patented I-Track suspension platform uses a mid-pivot layout to reduce pedal kickback and keep the rear wheel tracking the ground under power, so traction and control stay consistent even on the roughest trails. The Rogue R runs 165mm of rear travel (up to 170mm with a 27.5″ rear wheel), matched to a custom factory-tuned FOX Float X2 shock and a 170mm FOX 38 fork up front for a genuinely planted, confidence-inspiring ride.

FULL CARBON FIBRE MONOCOQUE FRAME

Built around a carbon fibre monocoque enduro frame, the Rogue R keeps weight low without sacrificing stiffness or durability. An integrated battery, internal cable routing, Boost 148mm rear spacing, and an oversized 16-tooth idler wheel keep the drivetrain running smoothly, while flip chips at the rear wheel and shock mounts let you fine-tune the geometry to suit your riding style.

PRO-SPEC BUILD: SRAM AXS GX EAGLE & MAVEN SILVER BRAKES

Shifting is handled by a SRAM AXS GX Eagle wireless transmission with a 10-52T cassette, giving you a huge gear range for climbing and descending alike, controlled from a wireless AXS pod shifter for crisp, cable-free changes. Stopping power comes from SRAM Maven Silver four-piston brakes on 220mm front and 200mm rear rotors, giving you serious control when the trail points downhill.

WARRANTY & PEACE OF MIND

Every Rogue R is backed by a 5-year frame warranty, 2 years of cover on the Avinox drive system, 5 years on the wheels, and 1 year on all other components – genuine peace of mind for a bike built to be ridden hard, day after day.

Specifications

Frame, Saddle, Dropper & Cockpit

• Frame: Carbon fibre enduro frame, mid-pivot, integrated battery
• Rear travel: 165mm, up to 170mm with 27.5″ rear wheel
• Rear wheel flip chip and shock position flip chip
• Internal cable routing, Boost 12x148mm rear axle
• 16T idler with oversized bearings
• Headset: FSA No.57 alloy MTB, ZS44/56
• Saddle: Fizik Terra Aidon X5
• Dropper post: OneUp V3 mechanical, 31.6mm (180mm travel S, 210mm M/L, 240mm XL)
• Handlebar: OneUp alloy, 800mm wide, 35mm rise
• Stem: OneUp forged, 42mm
• Grips: Velduro thick grips, black

Drive Train & Brakes, Cranks

• Brakes: SRAM Maven Silver 4-piston hydraulic
• Discs: SRAM HS2, 220mm front / 200mm rear
• Shifter: SRAM AXS pod controller
• Rear derailleur: SRAM AXS GX Eagle transmission
• Crankset: Avinox SL, 155mm
• Cassette: SRAM XS-1275, 10-52T
• Chain: SRAM GX Flat Top
• Chainring: SRAM EMTB Eagle, 34T

Wheels & Tyres

• Wheelset: Velduro e-Enduro carbon, EC-30
• Front hub: Alloy, 15x110mm thru-axle, 28h
• Rear hub: Alloy, 148x12mm thru-axle, 28h, 78T
• Spokes: Sapim E-Light straight-pull
• Rims: Carbon, 29″ front / 27.5″ rear, 30mm internal width
• Front tyre: Maxxis Assegai 29×2.5″, 3C Grip, DoubleDown, TR
• Rear tyre: Maxxis Minion DHR2 27.5×2.4″, 3C Terra, DoubleDown, TR
• Tubeless-ready (supplied with tube)

Suspension

• Fork: FOX 38 Factory-Series, 29″, 170mm travel, GRIP X2, 15x110mm
• Shock: FOX Float X2 Factory-Series, 205x65mm, custom factory-tuned for the Rogue

Avinox Drive System

• Motor: Avinox M2S, 250W nominal, 130Nm continuous torque, boost to 150Nm, 1,300W peak power
• Battery: Avinox 36V, 800Wh, fully integrated
• Display: Avinox DP100
• Charger: Avinox 4A, 168W

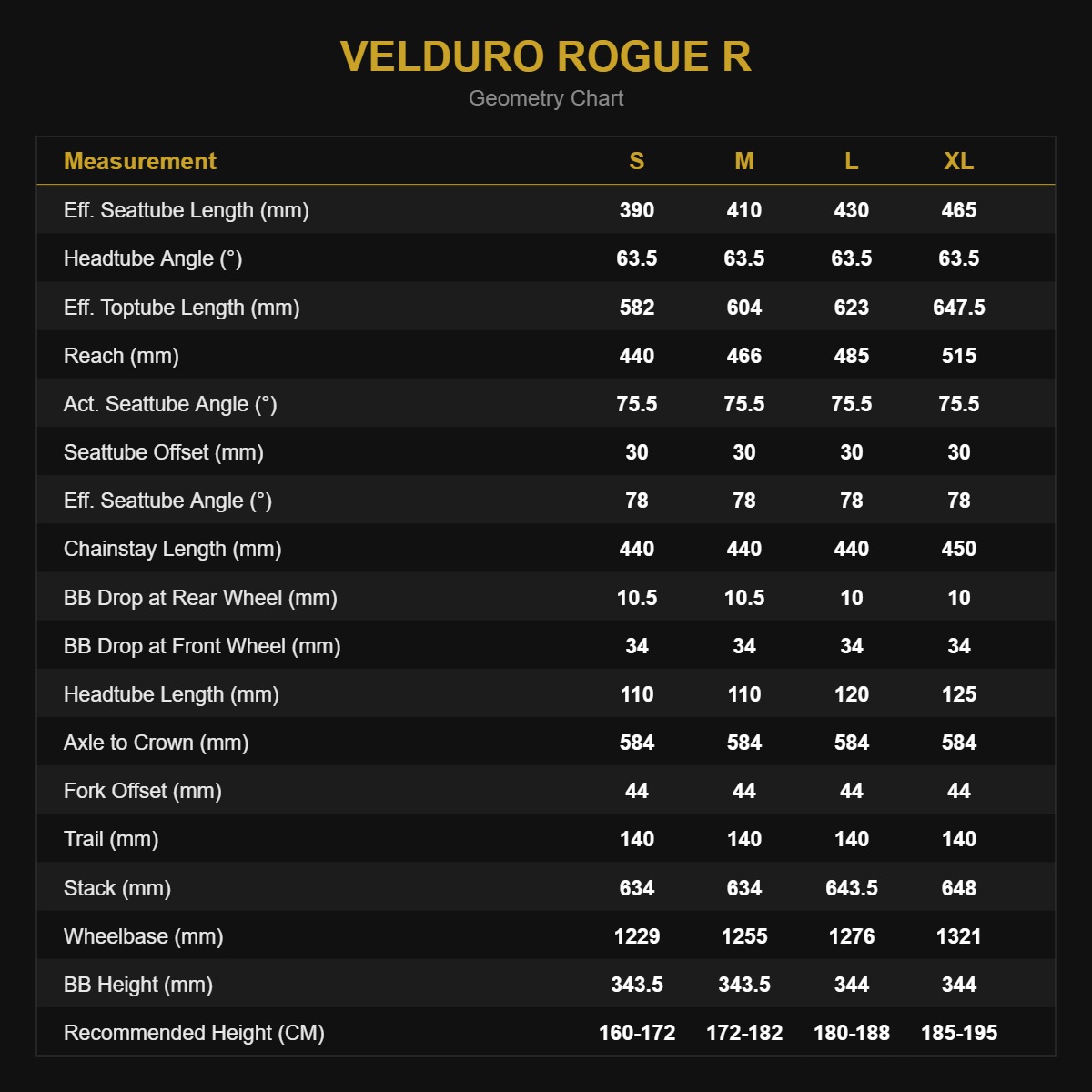

Geometry Overview (Small / Medium / Large / XL)

• Headtube angle: 63.5° (all sizes)
• Reach: 440 / 466 / 485 / 515mm
• Chainstay length: 440 / 440 / 440 / 450mm
• Wheelbase: 1,229 / 1,255 / 1,276 / 1,321mm
• BB height: 343.5 / 343.5 / 344 / 344mm
• Recommended rider height: 160–172cm / 172–182cm / 180–188cm / 185–195cm

Weight & Warranty

• Full build weight: 23.6kg
• Warranty: Frame 5 years, Avinox drive system 2 years, wheels 5 years, other components 1 year

FAQs – Velduro Rogue R eMTB

What is the Velduro Rogue R?
The Velduro Rogue R is a fully built enduro e-MTB powered by the Avinox M2S drive system, featuring a carbon fibre monocoque frame, custom-tuned FOX suspension, SRAM AXS GX Eagle drivetrain, and SRAM Maven Silver brakes. It’s designed for riders who want a race-ready, all-day enduro machine straight out of the box.

What motor and battery power the Rogue R?
The Rogue R runs the Avinox M2S motor, producing 130Nm of continuous torque (150Nm boosted) and 1,300W of peak power, paired with a fully integrated 800Wh battery and controlled via the Avinox DP100 display.

How much does the Velduro Rogue R weigh?
The Rogue R has a full build weight of 23.6kg, which is light for a full-power enduro e-MTB with a large-capacity 800Wh battery.

What suspension does the Rogue R use?
The Rogue R pairs a 170mm FOX 38 fork with a custom factory-tuned FOX Float X2 shock, delivering 165mm of rear travel (up to 170mm with a 27.5″ rear wheel) through Velduro’s I-Track mid-pivot suspension platform.

What sizes is the Rogue R available in?
The Rogue R is available in Small, Medium, Large, and Xtra Large, covering riders from approximately 160cm to 195cm tall. Full geometry details are listed above.

What warranty comes with the Rogue R?
The Rogue R is covered by a 5-year frame warranty, 2 years on the Avinox drive system, 5 years on the wheels, and 1 year on all other components.
