Velduro Phantom (Frame Only)

Velduro Phantom – Frame Only | Avinox M1 Powered

The Ultimate Platform for a Custom Carbon E-Gravel or Commuter Build

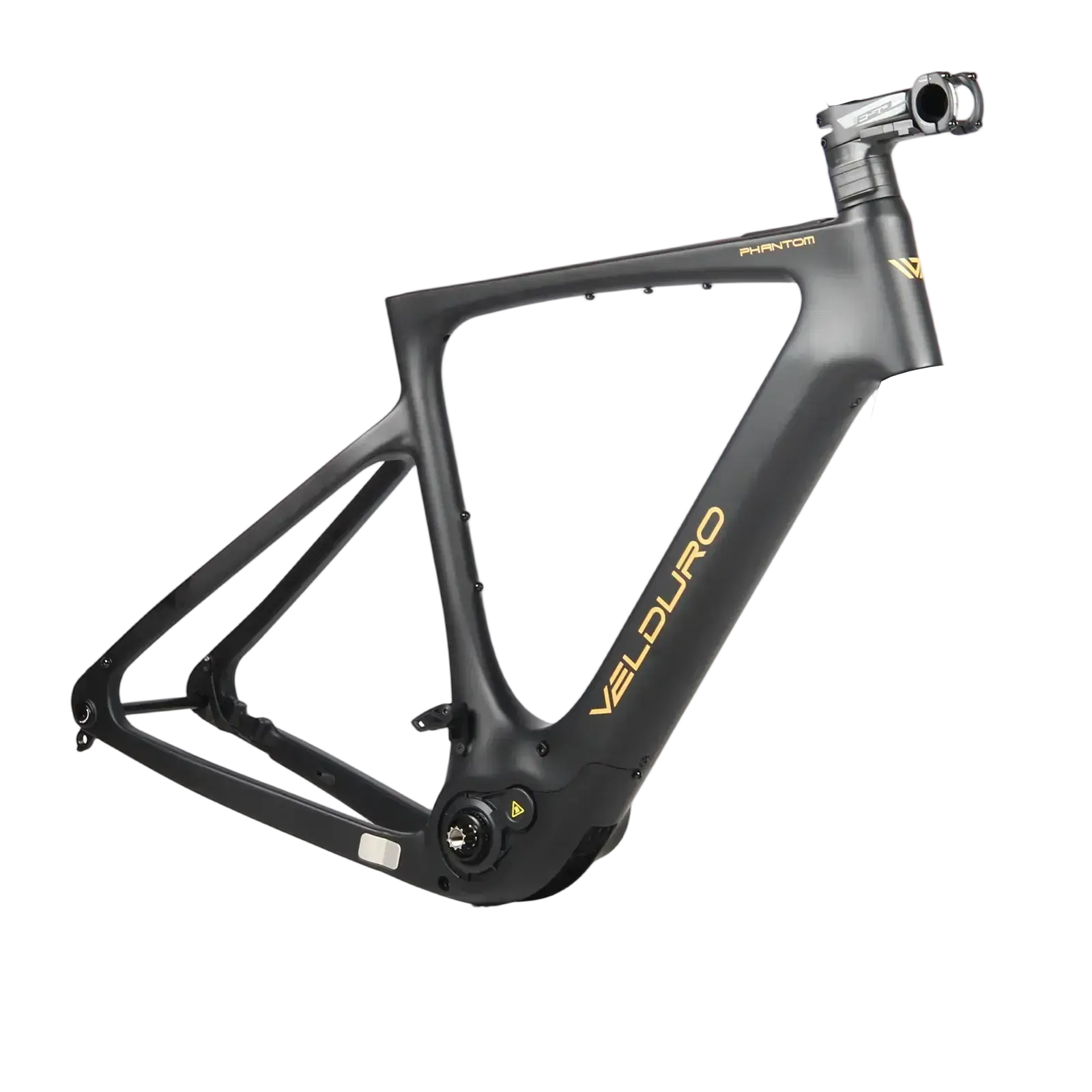

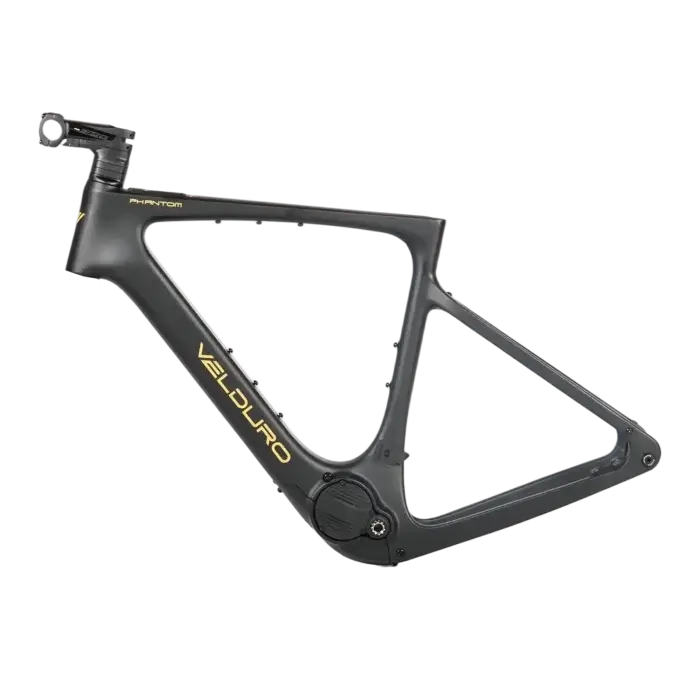

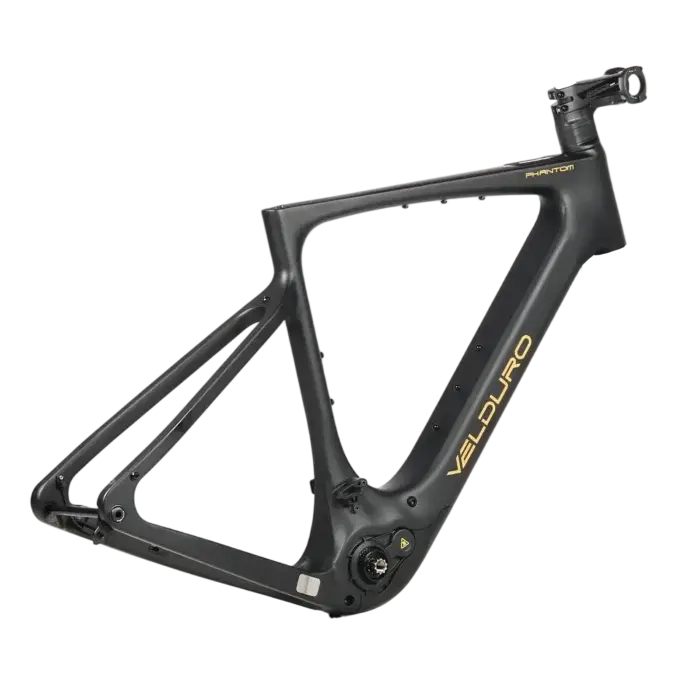

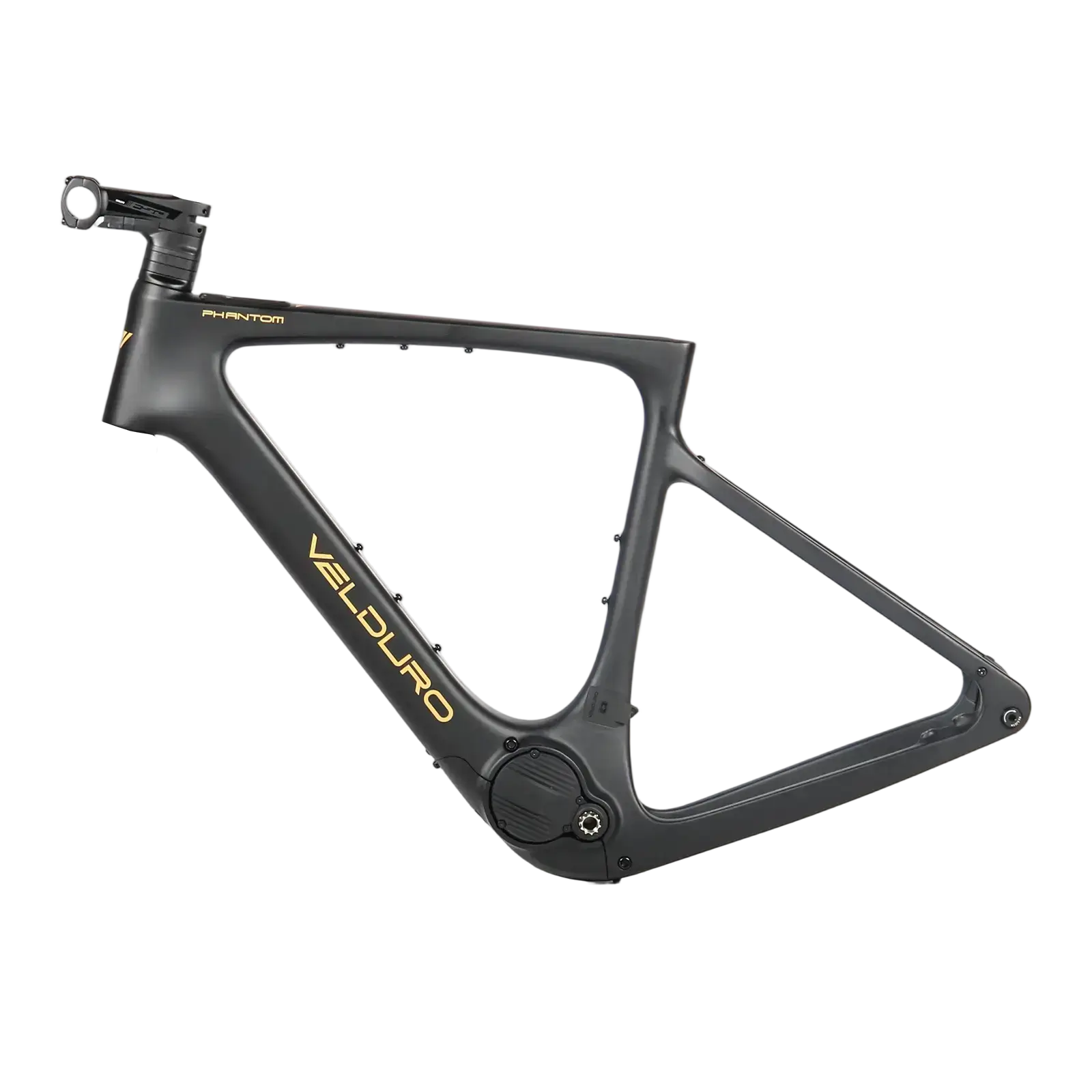

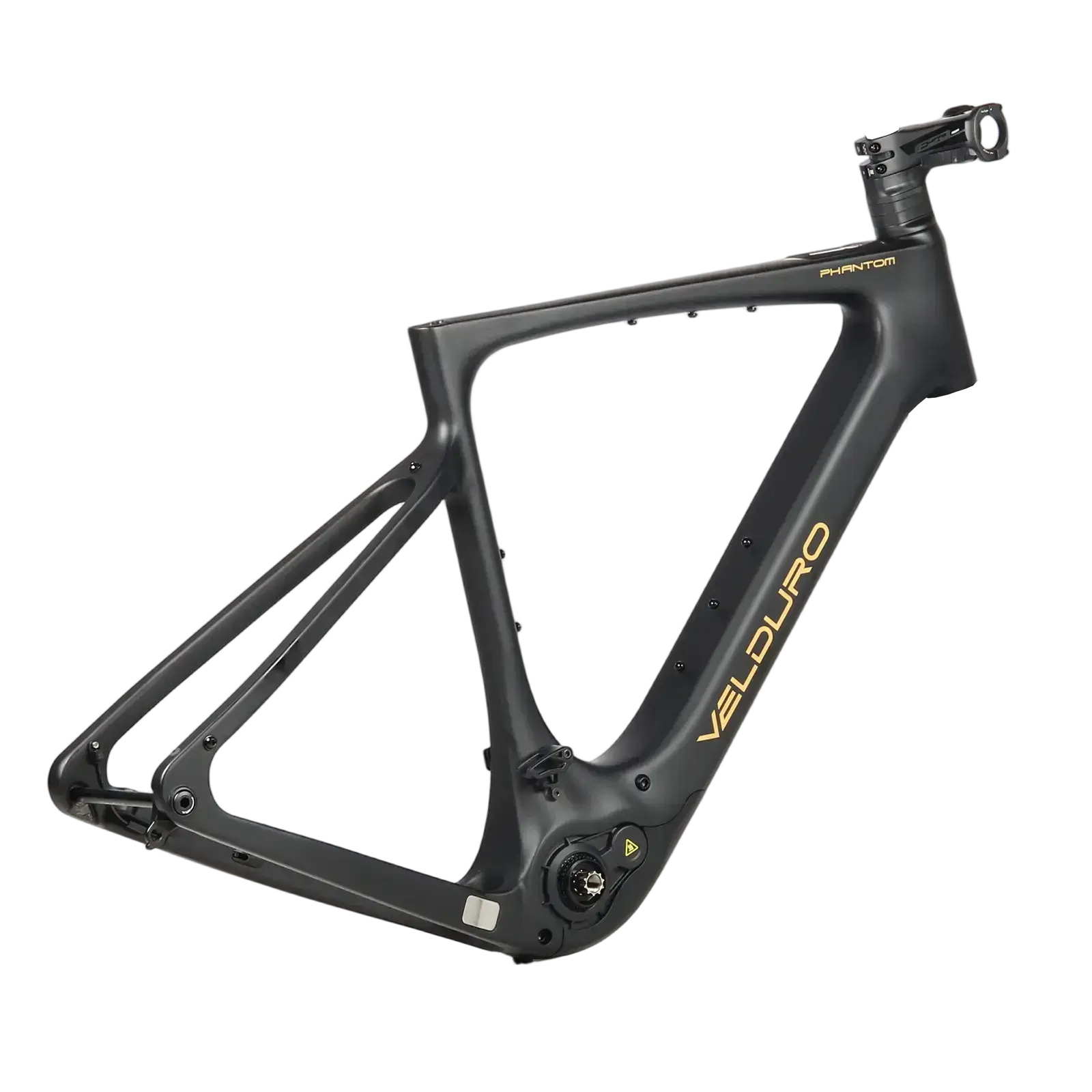

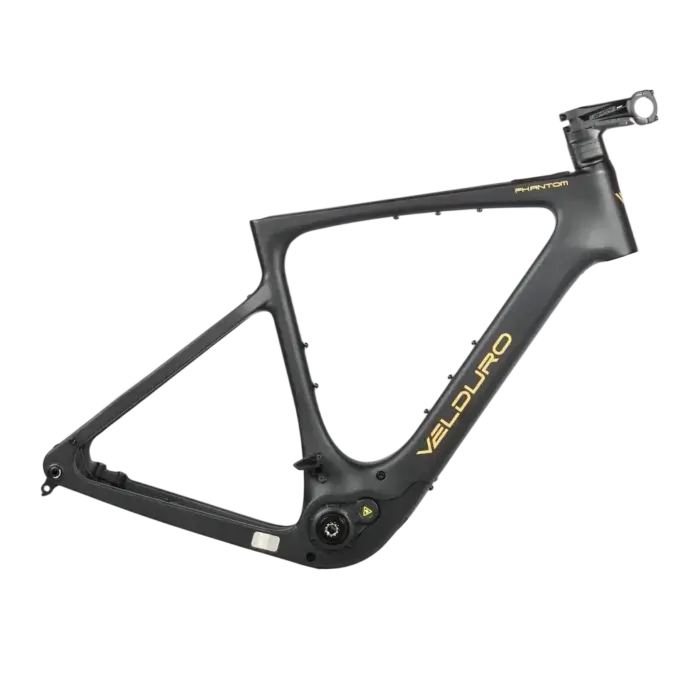

For riders who know exactly what they want, the Velduro Phantom Frame Only unlocks our Gold Award-winning e-gravel platform in its purest form. Featuring the same ultra-lightweight carbon fibre monocoque frame found on the flagship Phantom X and Phantom S, this frameset comes with a genuine Avinox drive system already integrated, ready for you to complete with the groupset, cockpit and wheels of your choice. Whether you’re chasing a stealthy drop-bar gravel racer or a rugged flat-bar adventure tourer, the Phantom frame is the ideal canvas.

Unlike a bare frame, the Phantom Frame Only arrives with its motor, battery and control electronics already built in, taking the guesswork out of building an e-bike from scratch. Simply add your preferred fork (or select the Frame and Fork option), handlebar, saddle, wheelset and drivetrain, and you’ll have a fully custom, race-ready electric adventure bike built exactly to your specification.

DJI AVINOX M1 MOTOR – PRE-INTEGRATED & READY TO RIDE

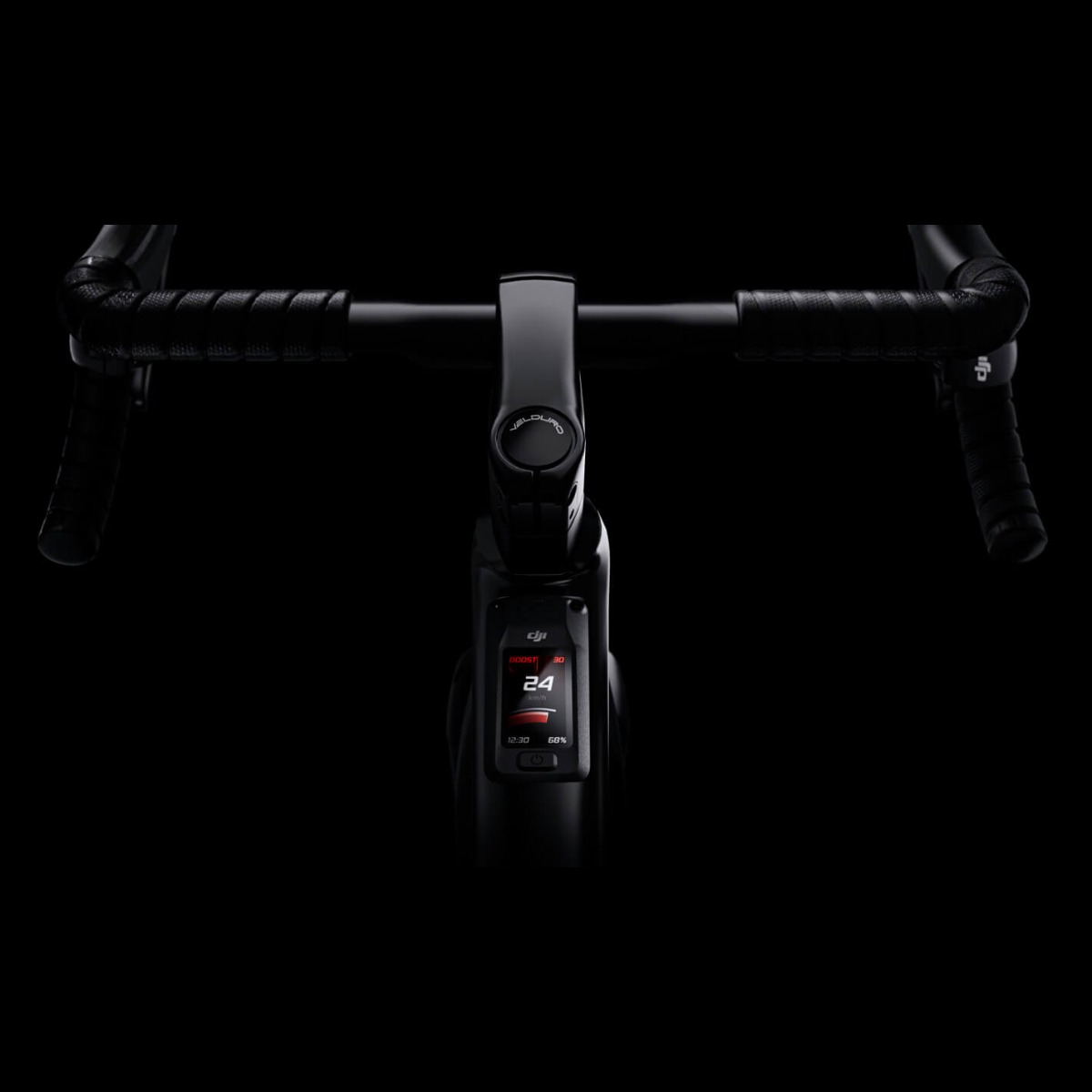

The Phantom Frame Only comes complete with a DJI Avinox M1 motor producing 250W and 105Nm of torque, paired with a 36V 600Wh battery fully integrated into the down tube for a clean, race-bike silhouette. A DJI DP100 2-inch smart screen keeps key ride data on hand, two DJI BC100 Bluetooth remotes give you handlebar control, and a DJI speed sensor plus 4A 168W charger complete the package, so all the hard electrical integration work is already done for you.

GOLD AWARD-WINNING CARBON MONOCOQUE FRAME

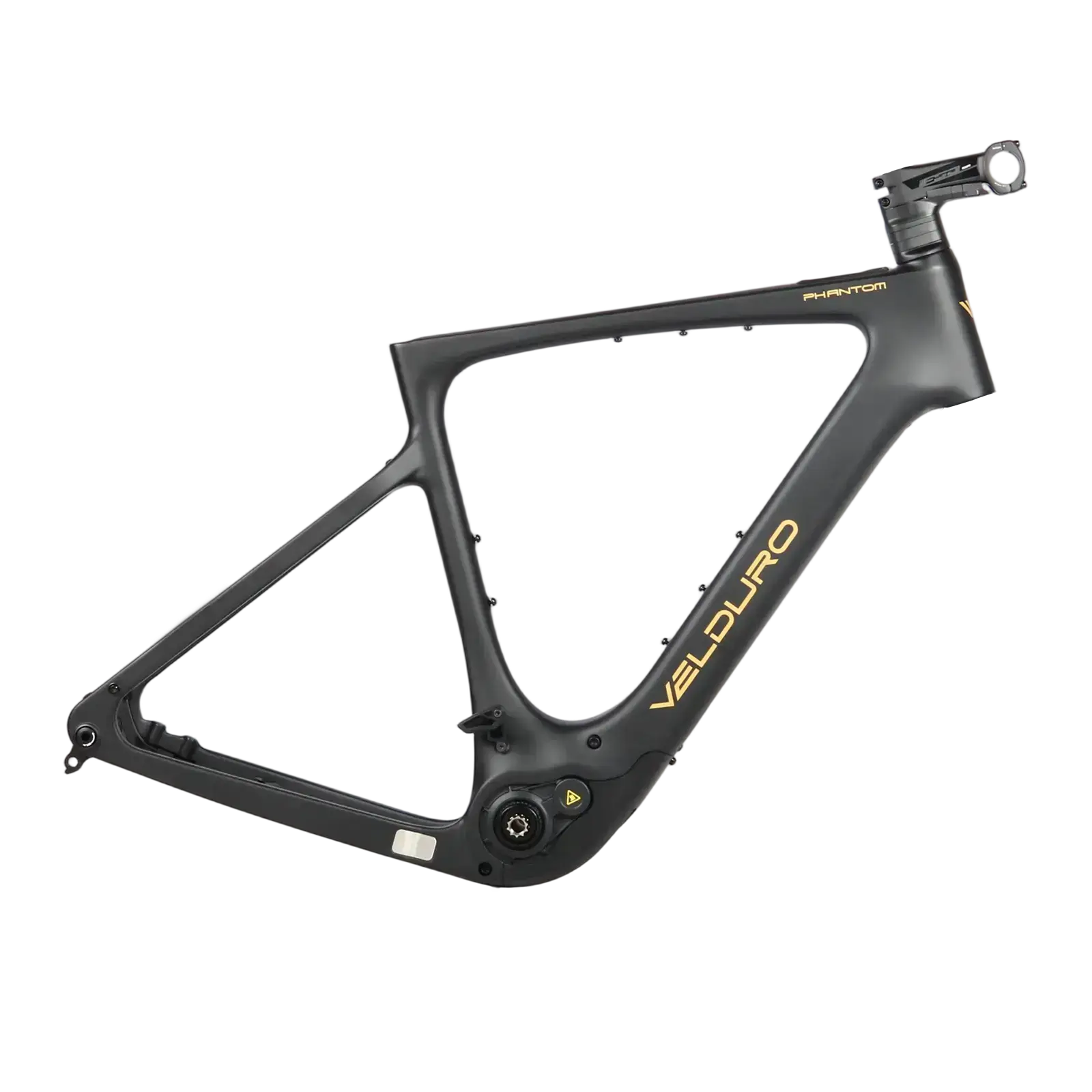

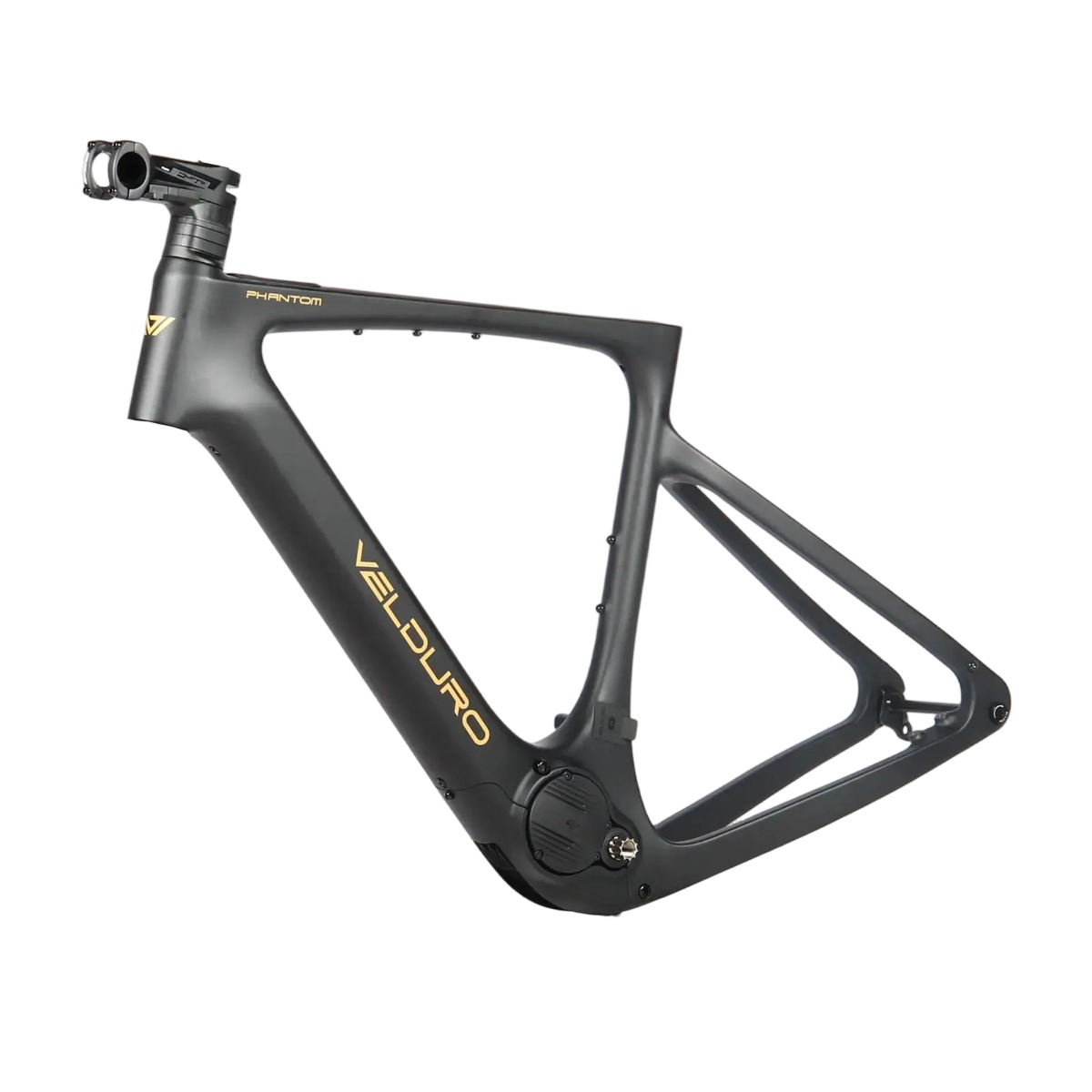

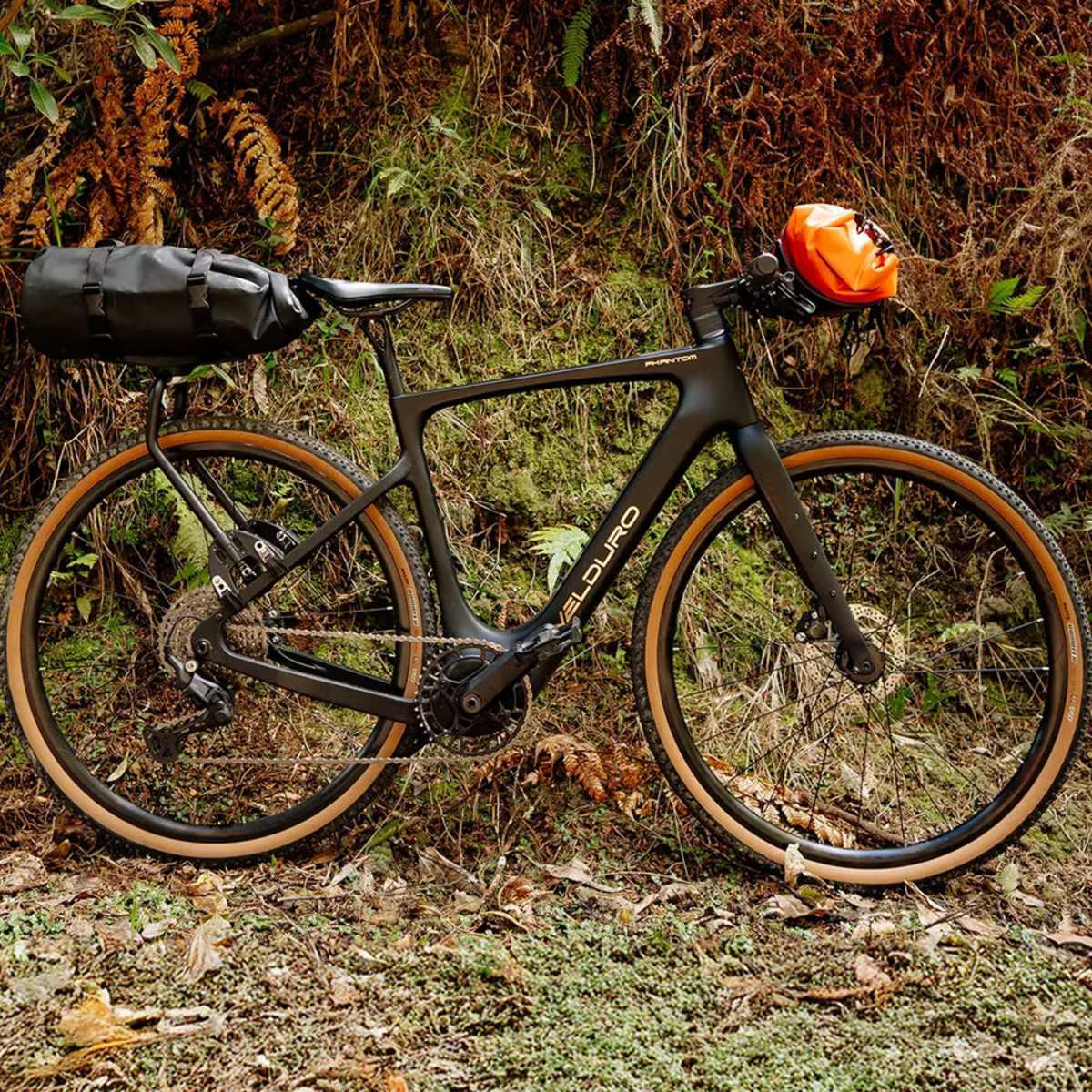

At just 6.1kg, the Phantom’s carbon fibre monocoque frame is remarkably light for an integrated e-bike platform, without compromising on stiffness or durability. UDH-compatible for maximum drivetrain flexibility and finished with 8 mounting points, it’s equally at home set up as a fast-rolling gravel racer or loaded up for multi-day bikepacking missions. A 12x142mm rear thru-axle, frame-integrated motor cover and bottle cage mounts round out a genuinely rider-first design.

BUILD IT YOUR WAY – DROP BAR OR FLAT BAR

The Phantom frame’s internally-routed 52mm headset accepts either a drop bar or flat bar cockpit, and is compatible with rigid or suspension gravel forks such as the RockShox Rudy, Fox 32 TC or SR Suntour GVX. A 27.2mm seatpost insert (250mm deep) suits both a rigid post or a dropper, with dropper cable routing already accounted for, so your build options stay wide open.

1X DRIVETRAIN FLEXIBILITY

Designed around simple, robust 1x drivetrains, the Phantom frame accepts chainrings up to 44T on a 104BCD spider, cranks up to 165mm, and is UDH-compatible for both Shimano and SRAM derailleurs up to 13-speed. Both electronic and manual shifting are supported, giving you complete freedom to specify the exact drivetrain that suits your riding style and budget.

WARRANTY & PEACE OF MIND

Every Phantom frame is backed by a 5-year frame warranty and a 2-year warranty on the Avinox drive system, so your custom build is protected from day one.

Specifications

What’s Included With The Frame

• Phantom carbon fibre monocoque frame (Frame Only) or frame & carbon fork (Frame and Fork option)
• Phantom motor cover
• 12x142mm rear thru-axle
• UDH hanger & bottle cage screws
• Seatpost lock
• DJI Avinox M1 motor, 250W, 105Nm
• Custom chainwheel & spider
• DJI Avinox ISIS crank, 155mm
• DJI Avinox battery, 36V 600Wh
• DJI DP100 2-inch smart screen
• DJI BC100 Bluetooth remote x2
• DJI speed sensor
• DJI 4A 168Wh charger
• Phantom charge port cover

Handlebar, Fork & Saddle Compatibility

• Headset: internal cable routing, 52mm diameter top & bottom
• Cockpit: drop bar or flat bar compatible
• Fork: suspension gravel forks suitable, e.g. RockShox Rudy, Fox 32 TC, SR Suntour GVX
• Seatpost: 27.2mm diameter, 250mm frame insert depth
• Dropper post compatible (manual or dropper), 27.2mm diameter, 1100mm cable length

Wheels & Tyres Compatibility

• Front hub: dependent on fork choice, typically 12x100mm thru-axle
• Rear hub: 12x142mm thru-axle
• Rims: 700C
• Tyres: 700x45C recommended, up to 700x50C maximum clearance (front & rear)

Drive Chain Compatibility

• Chainwheel: 104BCD, up to 44T
• Crank length: up to 165mm, 0mm offset suitable
• Derailleur: UDH-compatible, up to 13-speed, 1x shifting only
• Compatible with both Shimano and SRAM drivetrains
• Compatible with e-shift (electronic) and manual shifting; manual shift cable length 1650mm

Weight & Warranty

• Frame weight: 6.1kg (carbon fibre monocoque)
• UDH compatible
• 8 mounting points for bikepacking
• Warranty: 5 years frame, 2 years Avinox drive system
• Options: Frame Only or Frame and Fork
• Sizes available: Small, Medium, Large, X-Large

FAQs – Velduro Phantom Frame Only

Does the Phantom Frame Only come with the motor already fitted?
Yes. Unlike a standard frameset, the Phantom Frame Only is supplied with the DJI Avinox M1 motor, 600Wh battery, display, remotes and speed sensor already integrated, so you only need to add your fork, cockpit, wheels and drivetrain.

What is the difference between the Frame Only and Frame and Fork options?

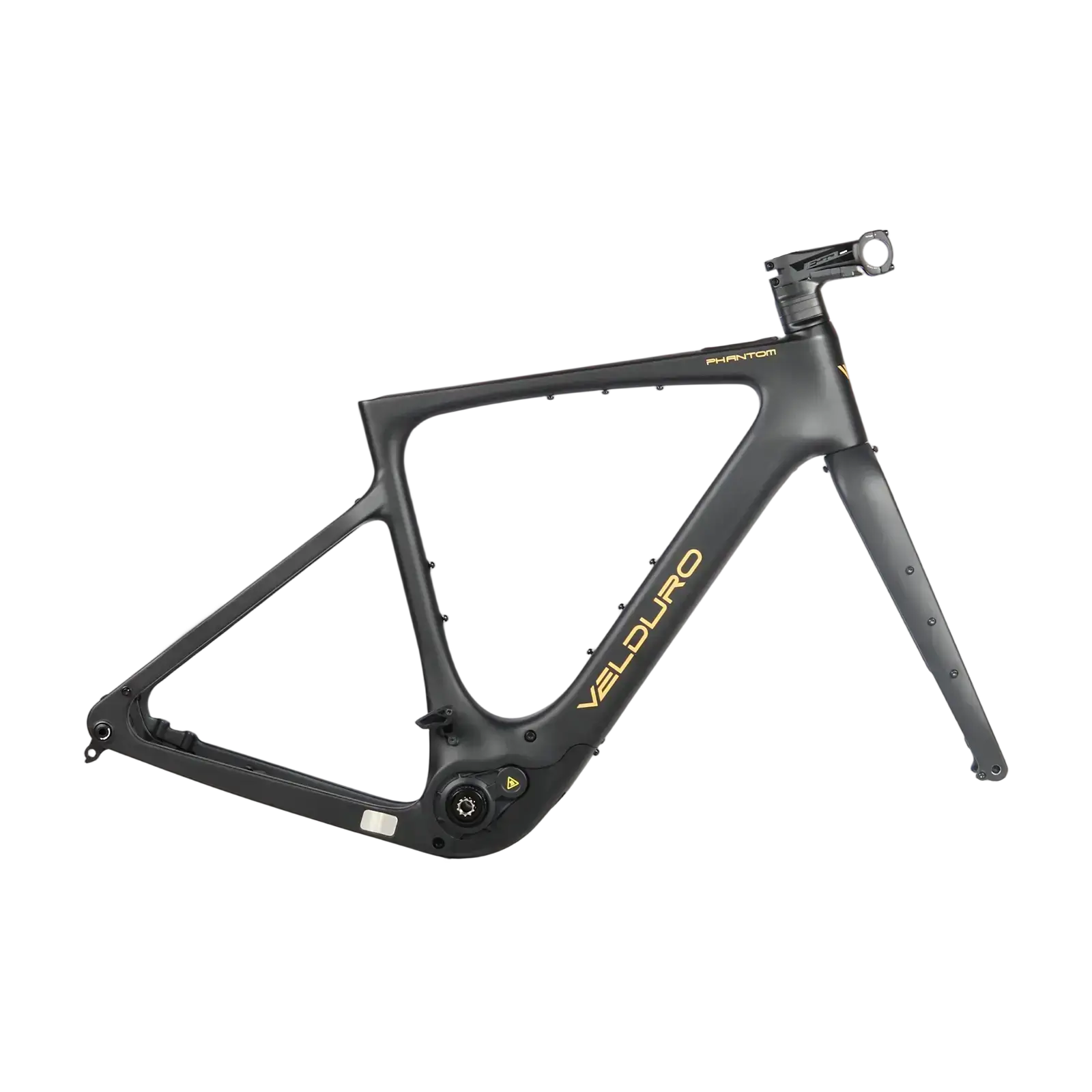

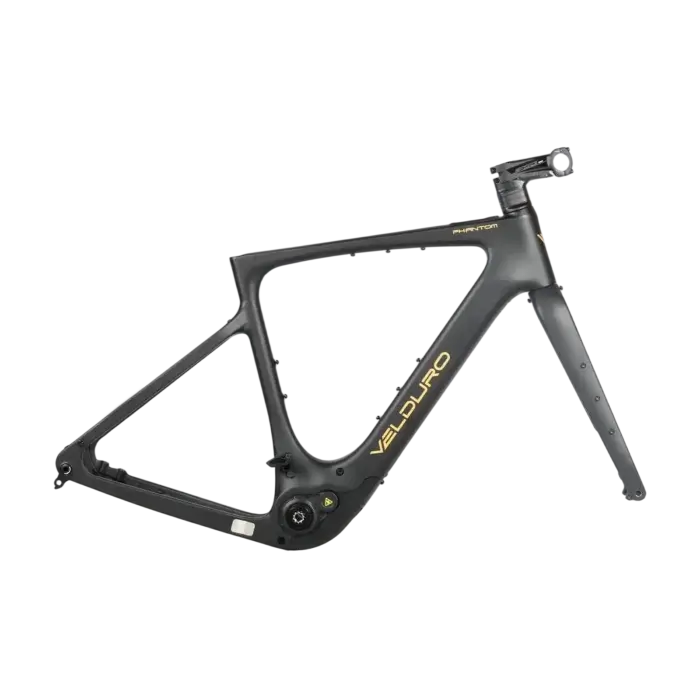

The Frame Only option includes the carbon frame and integrated Avinox drive system, while the Frame and Fork option also includes the matching Phantom carbon gravel fork.

Can I build the Phantom with a drop bar or flat bar?
Yes, the frame’s cockpit and cable routing are designed to suit either a drop bar gravel build or a flat bar commuter/adventure build.

What drivetrain components are compatible with the Phantom frame?
The frame is UDH-compatible and suits 1x Shimano or SRAM drivetrains up to 13-speed, with chainrings up to 44T on a 104BCD spider and cranks up to 165mm.

Can I fit a dropper post?
Yes, the frame has a 27.2mm seatpost insert with internal dropper cable routing, suitable for either a rigid seatpost or a dropper post.

What warranty comes with the Phantom Frame Only?
The Phantom Frame Only is covered by a 5-year frame warranty and a 2-year warranty on the integrated Avinox drive system.

What sizes is the Phantom Frame Only available in?
The Phantom Frame Only is available in Small, Medium, Large and X-Large to suit a wide range of rider heights.
